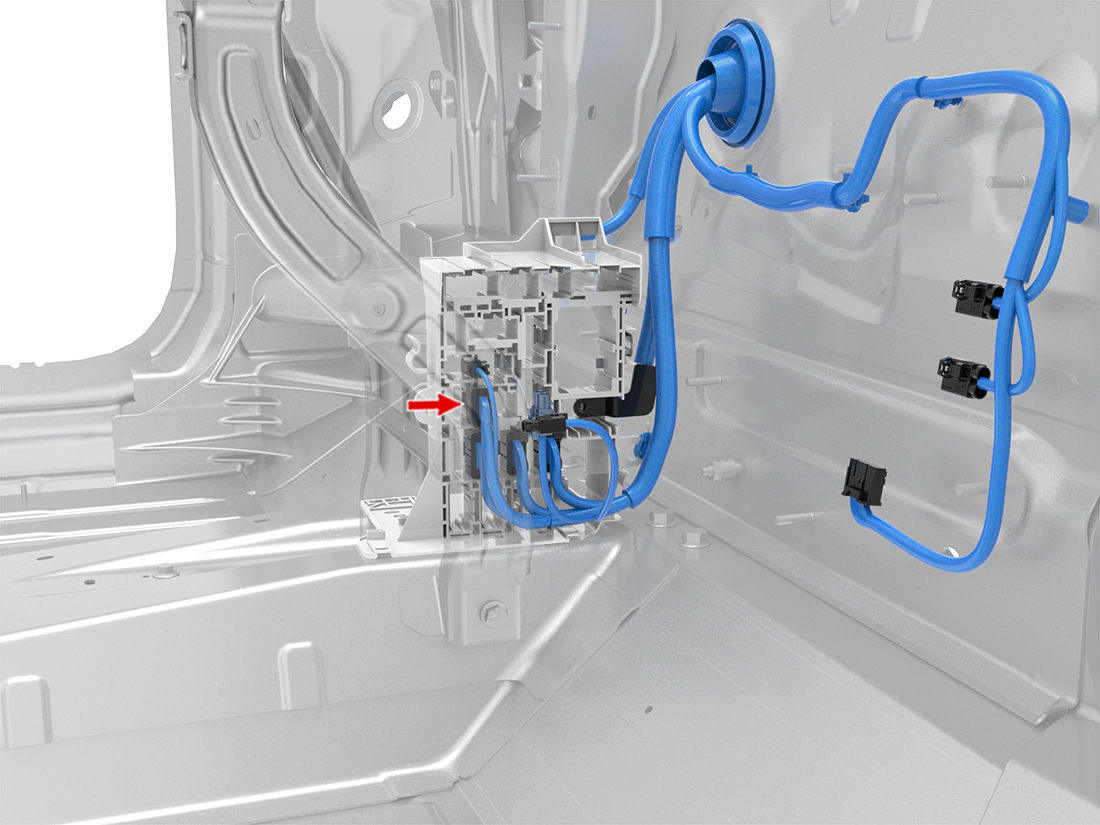

X910F - x-lhd-sop9

Tesla Part Number

1042583-00-A

Connector

SUMITOMO 6098-3925

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X068	12
2	SUMITOMO	8100-3625	0.64x0.64F	RD/BK	0.50	X752	12
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X901M	2
4	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.50	X901M	4
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X901M	5
6	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.50	X901M	6
7
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X003	34
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X062	13
10	SUMITOMO	8100-3624	0.64x0.64F	YE/WH	0.35	X751	3
11	SUMITOMO	8100-3624	0.64x0.64F	YE	0.35	X751	14
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X068	13
13	SUMITOMO	8100-3625	0.64x0.64F	BR	0.35	X068	14
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X901M	7
15	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.50	X901M	8
16	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.50	X901M	9
17	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50	X901M	3
18	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X031	12
19	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X003	4
20	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50	X062	12
21	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X051	40
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X068	11
