X915M - x-lhd-sop9

Tesla Part Number

1042615-01-A

Connector

SUMITOMO 6098-5634

Color

BK

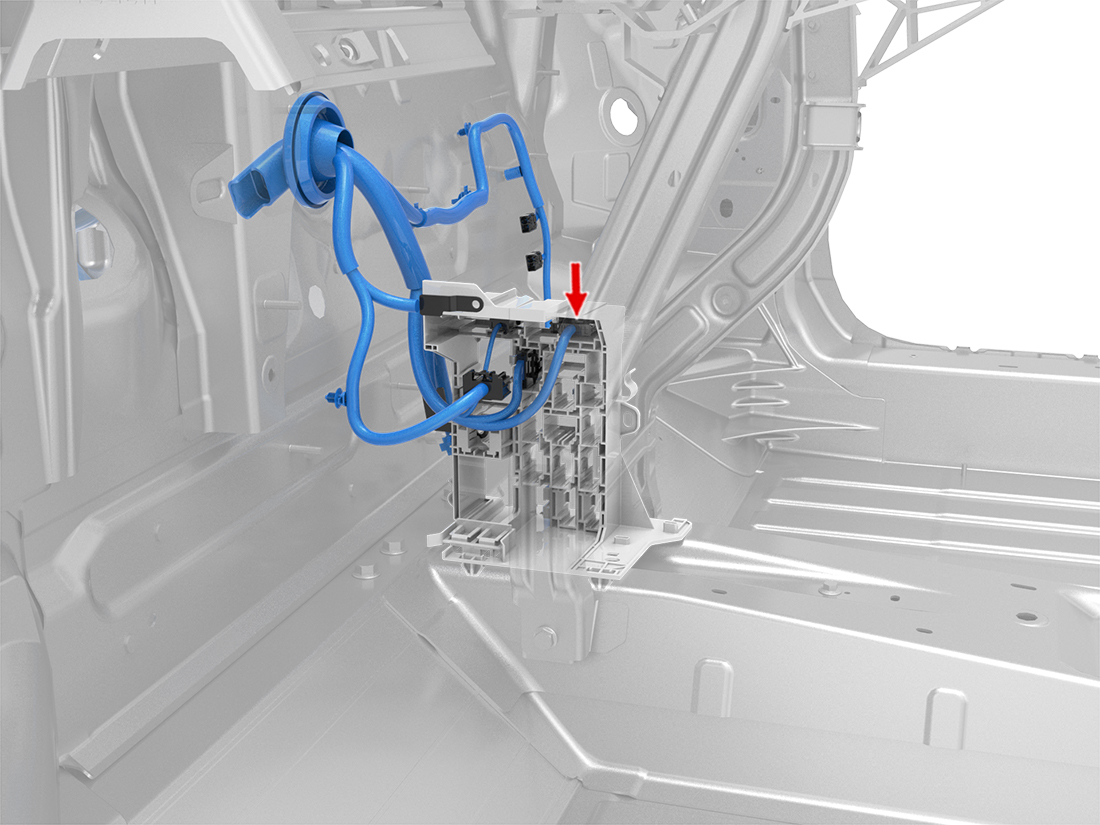

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X001	17
2	SUMITOMO	8230-4923	1.5x0.6M	BN	1.50			X002	17
3	SUMITOMO	8100-3623	0.64x0.64M	BU/WH	0.50			X906F	6
4	SUMITOMO	8100-3622	0.64x0.64M	YE/WH	0.35			X751	5
5
6	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X202	1
7	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X906F	12
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X203	1
9	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X259	1
10	SUMITOMO	8230-4923	1.5x0.6M	RD/VT	1.50			X150	17
11	SUMITOMO	8230-4924	1.5x0.6M	RD/BK	0.75			X597	1
12
13	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50			X906F	7
14	SUMITOMO	8100-3622	0.64x0.64M	YE	0.35			X751	16
15	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X202	2
16	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X203	2
17	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X259	2
18	SUMITOMO	8230-4924	1.5x0.6M	RD	0.75			X597	2
