X916M - x-lhd-sop9

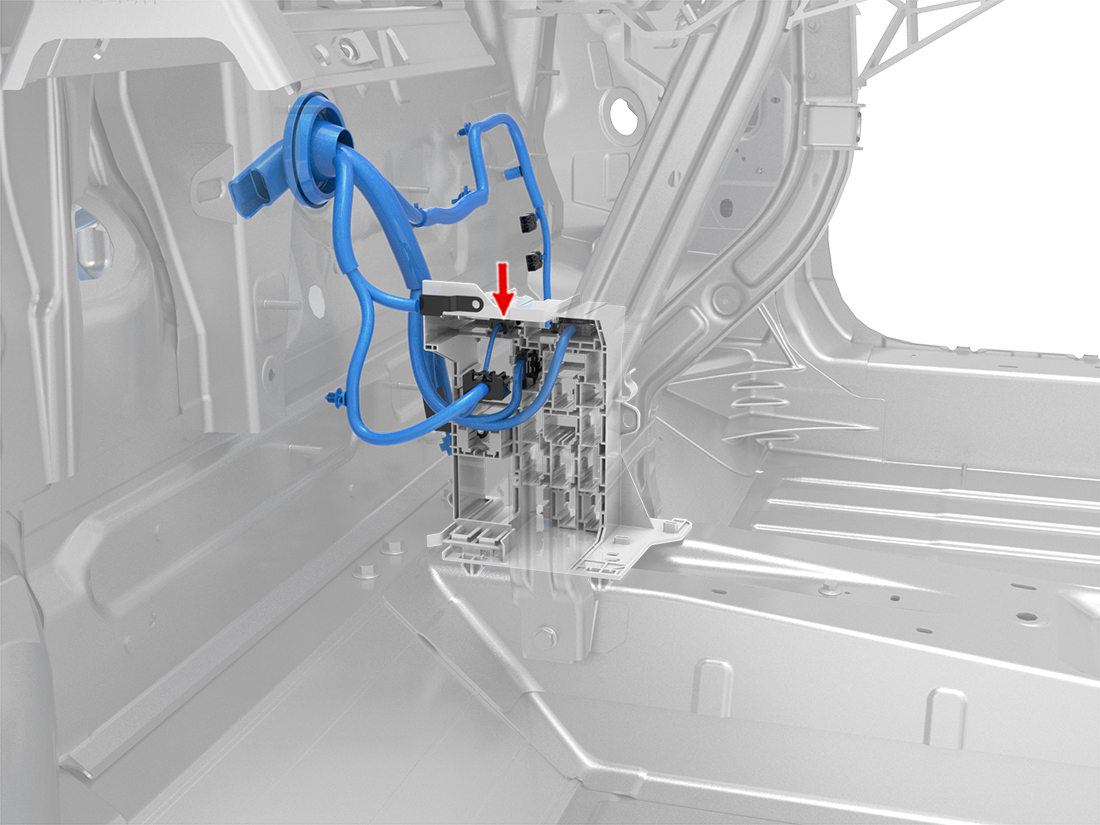

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4542 | 4.8x0.8M | RD/VT | 2.00 | X001 | 24 | ||
| 2 | SUMITOMO | 8230-4542 | 4.8x0.8M | RD/WH | 2.00 | X002 | 20 |
