X921F - x-lhd-sop9

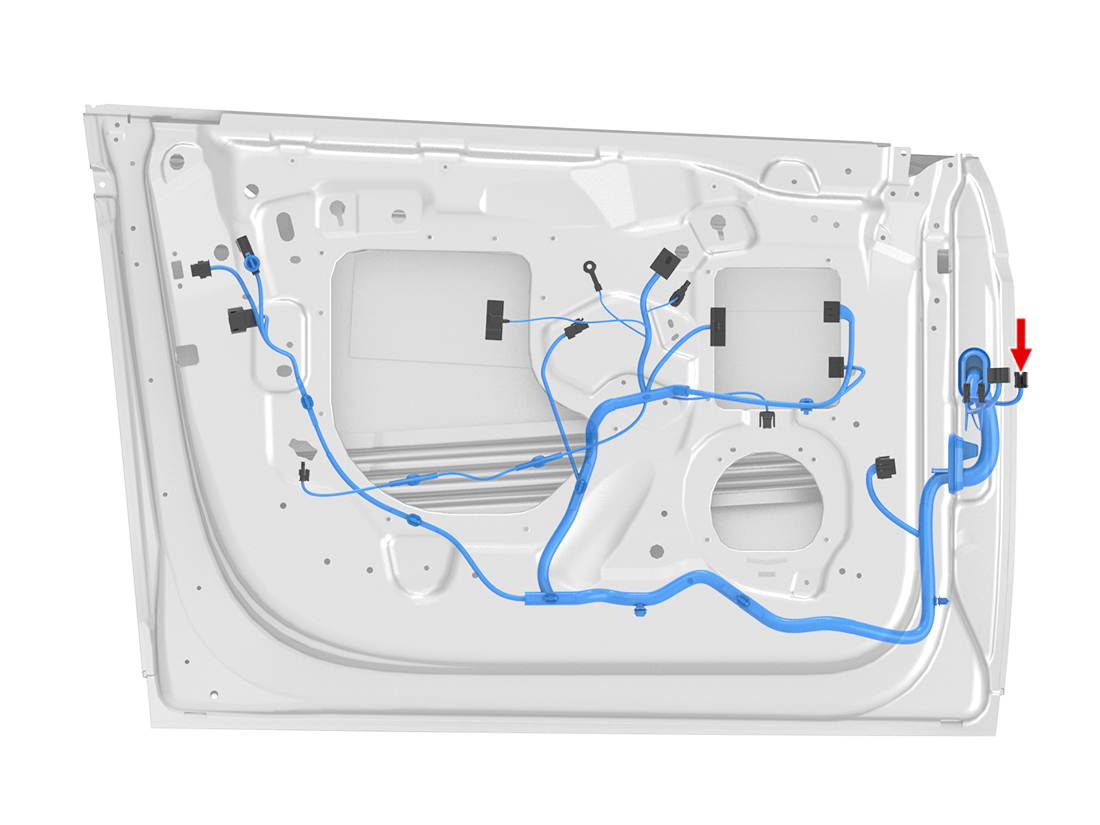

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-4932 | 4.8x0.8F | RD/VT | 2.00 | X362 | 1 | ||
| 2 | SUMITOMO | 8240-4932 | 4.8x0.8F | BK | 2.00 | X362 | 5 |
