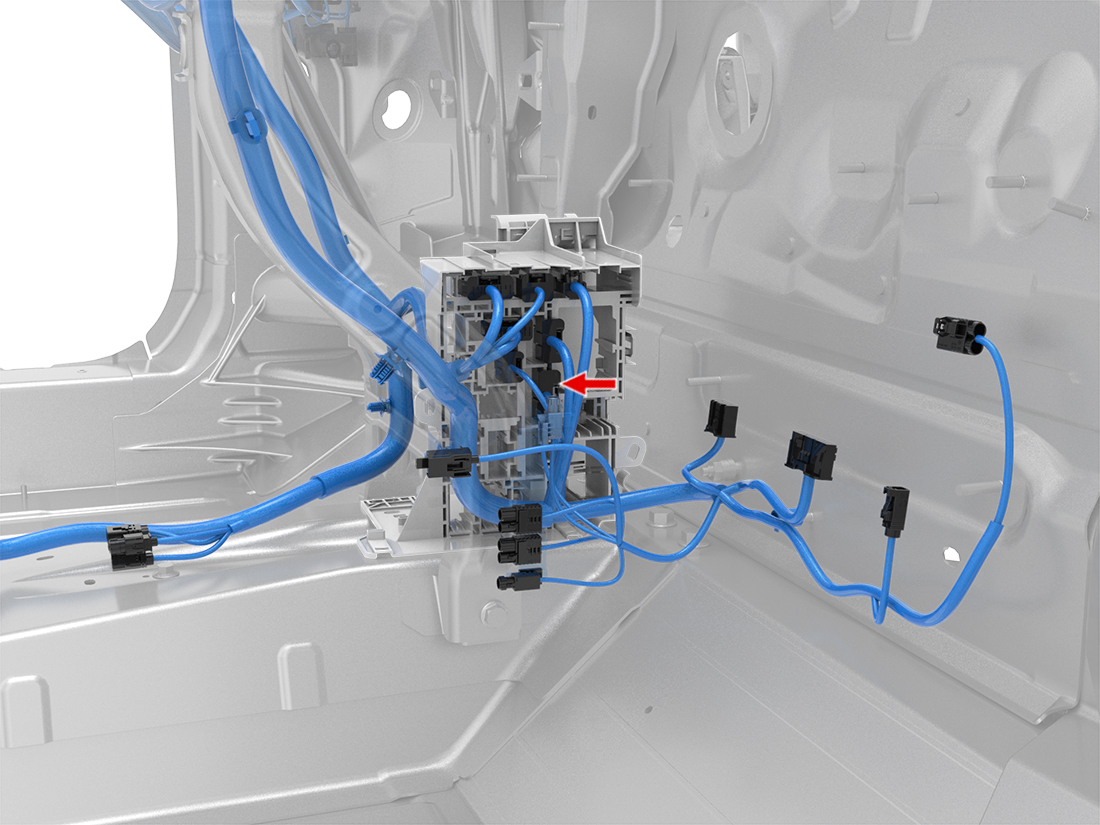

X924F - x-lhd-sop9

Tesla Part Number

1048099-02-A

Connector

YAZAKI 7287-1918-40

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50	X922M	1
2
3	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X060	6
4	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X060	7
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X060	1
6	SUMITOMO	8100-3625	0.64x0.64F	SI	0.35	X060	2
7
8	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X732	4
9
10	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35	X732	5
11
12	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X734	21
13
14	SUMITOMO	8240-0214	1.5x0.64F	RD/WH	1.50	X063	11
15
16	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35	GND_IP_R	1
17	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X060	23
18	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X060	14
19	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50	X060	13
20
21	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X732	15
22	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X732	16
23
24	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X126	16
25	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X060	9
26
