X930F - x-lhd-sop9

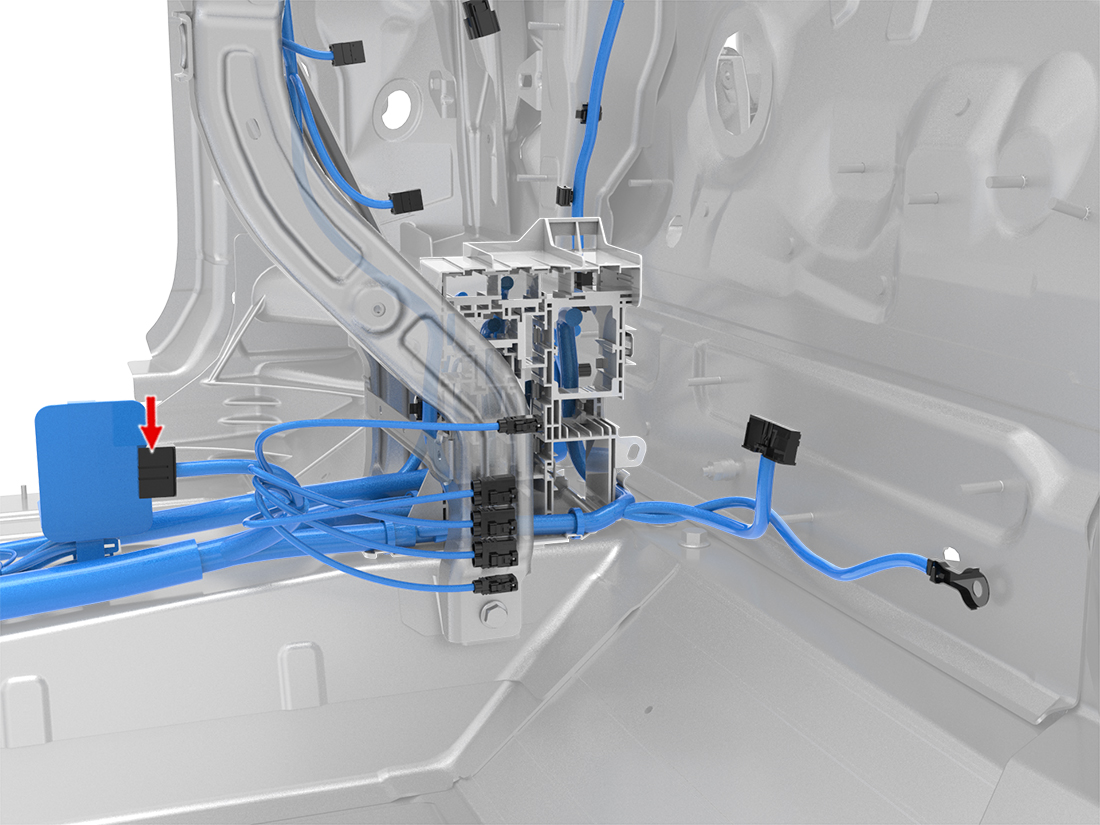

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD/GN | 1.00 | X021 | 14 | ||
| 2 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD/WH | 1.00 | X021 | 10 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.50 | X924M | 5 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.50 | X924M | 19 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | SI | 0.35 | X924M | 6 | ||
| 6 | |||||||||
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK/WH | 1.00 | GND_C | 1 | ||
| 11 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 1.00 | X027 | 8 | ||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK | 1.00 | GND_C | 1 | ||
