X954F - x-lhd-sop9

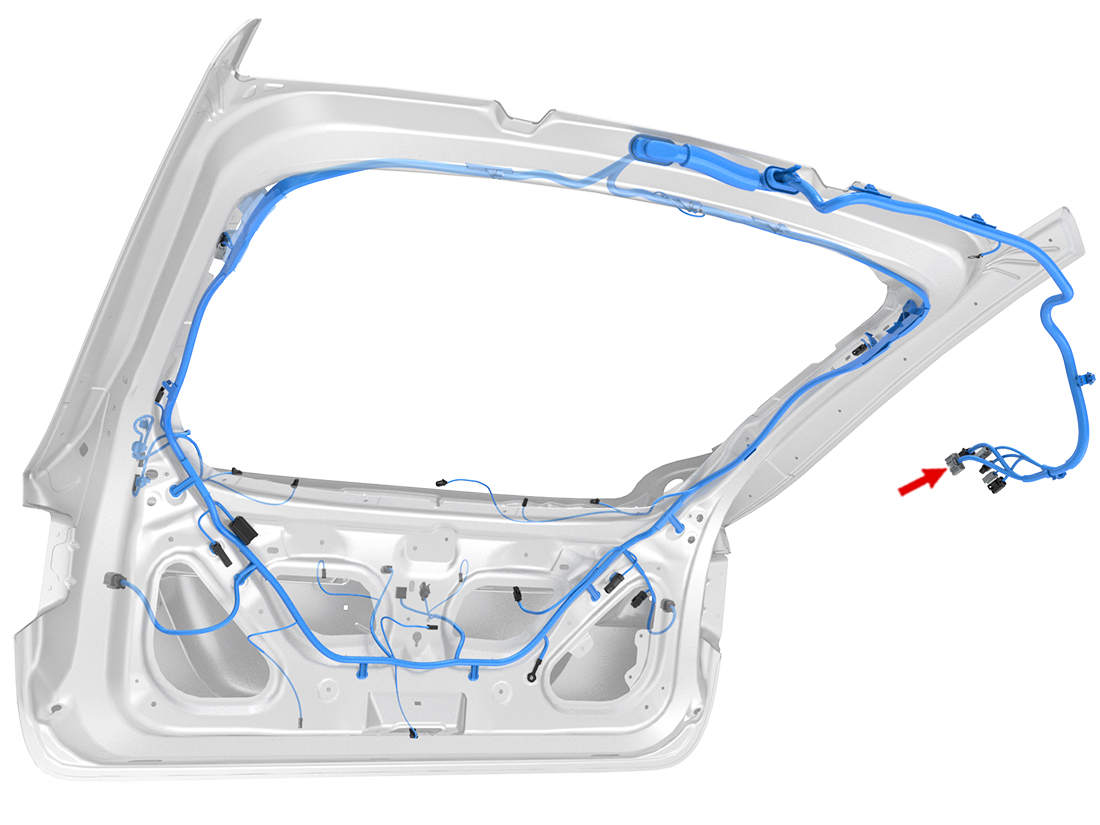

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0213 | 1.5x0.64F | BU | 0.75 | X790 | 3 | ||
| 2 | SUMITOMO | 8240-0213 | 1.5x0.64F | GN | 0.75 | X790 | 6 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY/WH | 0.50 | X341 | 1 | ||
| 4 | |||||||||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU/WH | 0.50 | X343 | 1 | ||
| 6 | |||||||||
| 7 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | ||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | SUMITOMO | 8240-0213 | 1.5x0.64F | VT | 0.75 | X790 | 9 | ||
| 12 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK | 0.75 | X790 | 12 | ||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.50 | X341 | 2 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.50 | X344 | 1 | ||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
