X962 - x-lhd-sop9

Tesla Part Number

1051430-00-B

Connector

MOLEX 34985-1602

Color

GY

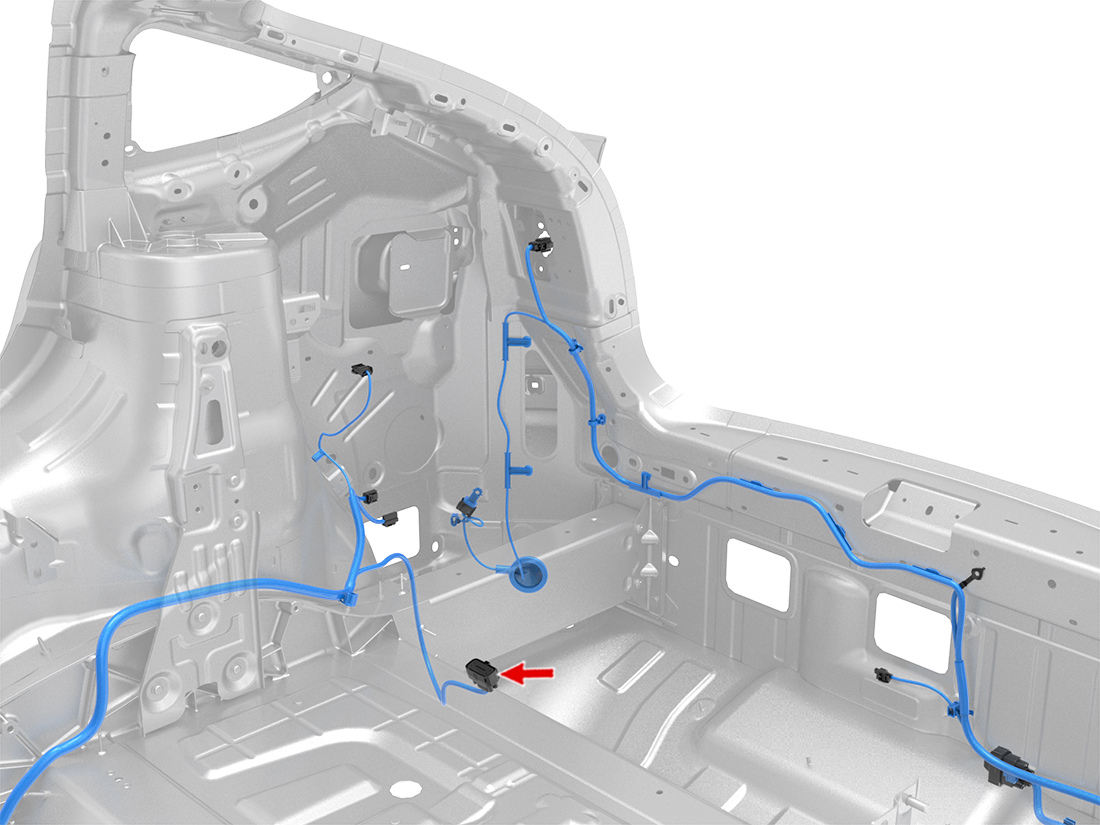

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1326032-3	2.8x0.8FS	VT	0.75	YAZAKI	7158-3111-60	X958	9
2				BU	0.50	TESLA	MAT-120-240	X958	10
3				GN/WH	0.50	TESLA	MAT-120-240	X958	11
4				RD/WH	0.50	TESLA	MAT-120-240	X958	6
5				GN	0.50	TESLA	MAT-120-240	X958	14
6				GY	0.50	TESLA	MAT-120-240	X958	15
7				BU/WH	0.50	TESLA	MAT-120-240	X958	4
8	AMP	1326032-3	2.8x0.8FS	BK	0.75	YAZAKI	7158-3111-60	GND_C2	1
9
10				BN	0.50	TESLA	MAT-120-240	X958	12
11	MOLEX	33012-3002	1.5x0.8F	BK	0.75	TESLA	MAT-120-240	X958	13
12
13
14
15
16
