X970M - x-lhd-sop9

Tesla Part Number

1042617-01-A

Connector

SUMITOMO 6098-5653

Color

BK

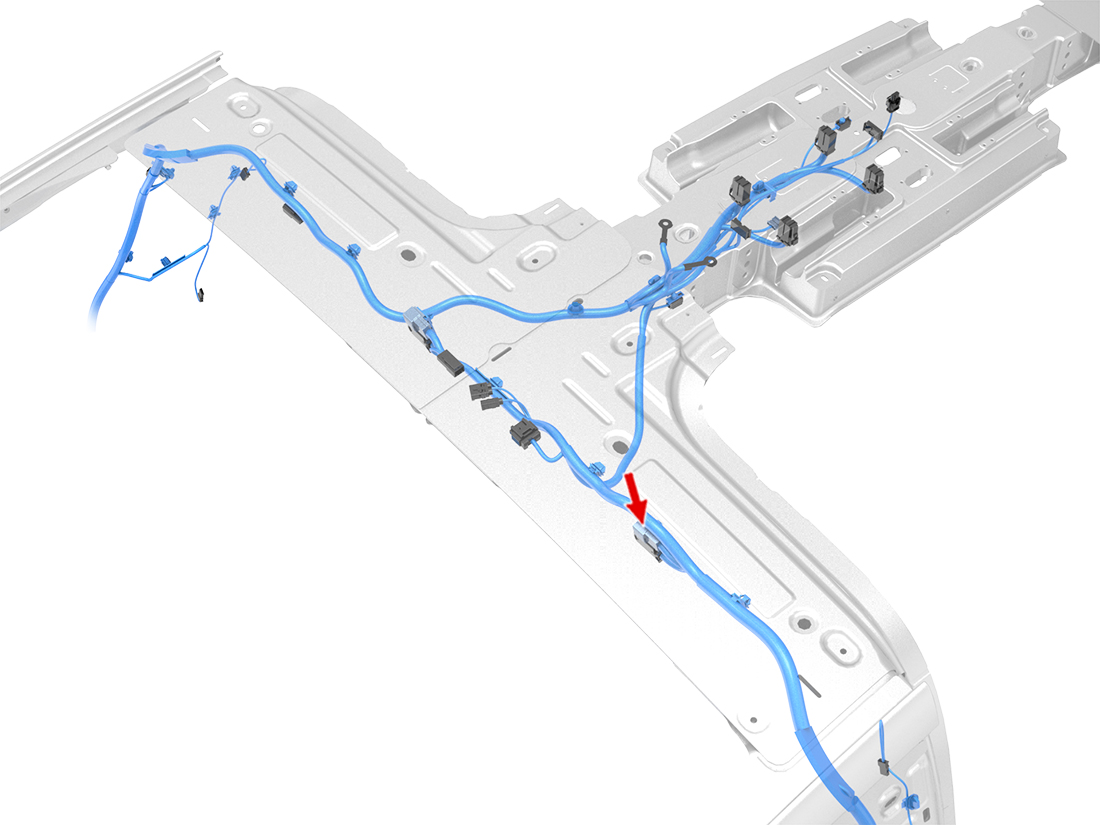

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4924	1.5x0.6M	BU	0.75			X020	2
2	SUMITOMO	8230-4923	1.5x0.6M	RD/GN	2.00			X020	5
3	SUMITOMO	8230-4923	1.5x0.6M	RD	1.50			X925M	7
4	SUMITOMO	8230-4923	1.5x0.6M	GY	1.50			X925M	13
5	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35			X971M	5
6	SUMITOMO	8230-4923	1.5x0.6M	BK/WH	2.00			GND_LB	1
7
8	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X201	9
9	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X201	10
10	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X925M	17
11	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X926M	7
12	SUMITOMO	8230-4924	1.5x0.6M	BK	1.00			GND_LB	1
13
14	SUMITOMO	8100-3622	0.64x0.64M	GN	0.35			X482	2
15	SUMITOMO	8100-3622	0.64x0.64M	VT	0.35			X971M	17
16	SUMITOMO	8100-3622	0.64x0.64M	GY/WH	0.35			X971M	14
17	SUMITOMO	8100-3622	0.64x0.64M	GY	0.35			X971M	15
18
