X971F - x-lhd-sop9

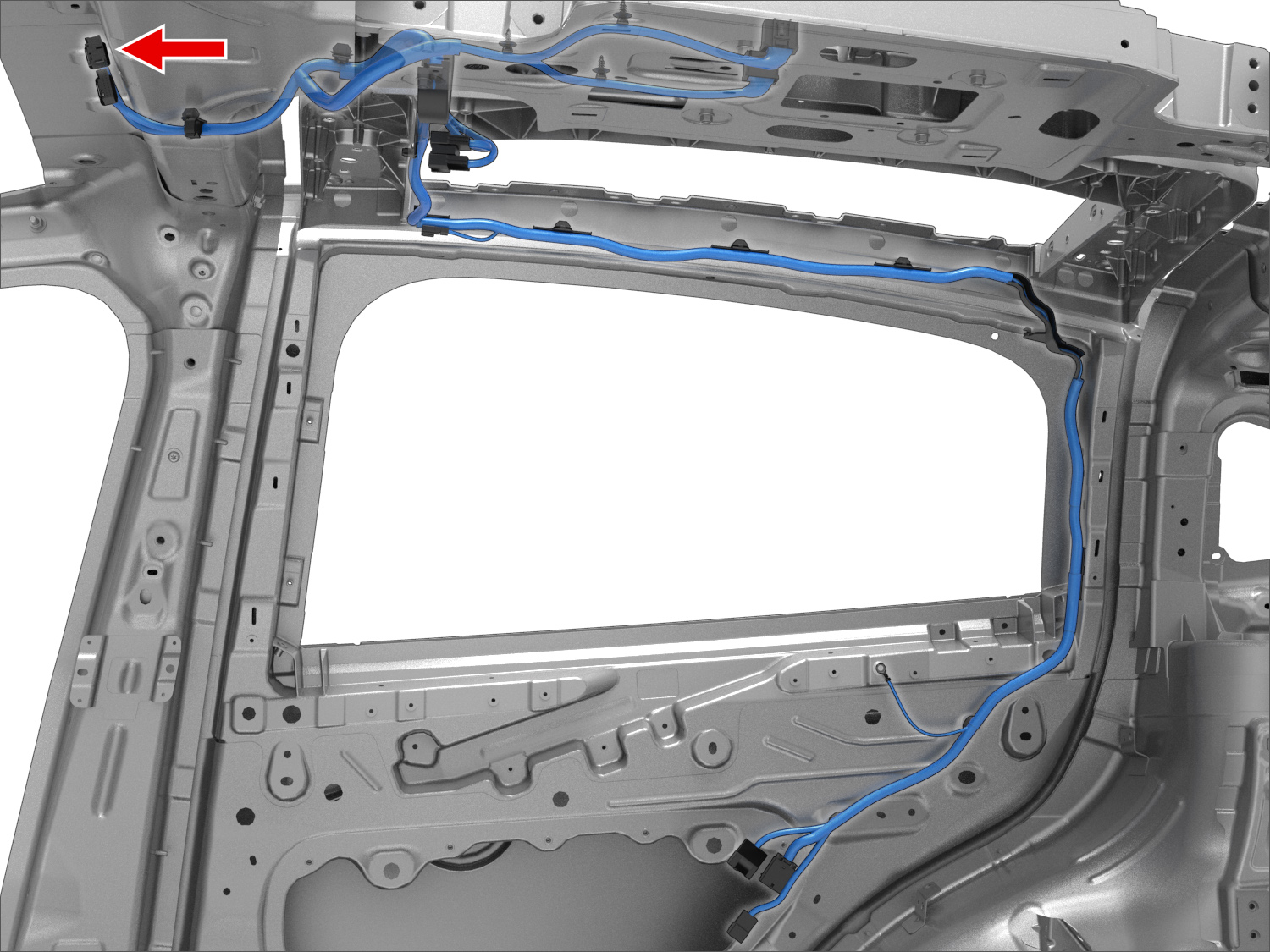

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0213 | 1.5x0.64F | BU | 0.75 | X975M | 2 | ||
| 2 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD/GN | 2.00 | X975M | 1 | ||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 1.50 | X975M | 10 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 1.50 | X975M | 18 | ||
| 5 | SUMITOMO | 8240-0215 | 1.5x0.64F | BN | 0.35 | X975M | 7 | ||
| 6 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK/WH | 2.00 | X975M | 11 | ||
| 7 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK/GY | 0.35 | X987M | 4 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | OG | 0.35 | X975M | 8 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X975M | 16 | ||
| 10 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X975M | 3 | ||
| 11 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X975M | 13 | ||
| 12 | SUMITOMO | 8240-0213 | 1.5x0.64F | BK | 1.00 | GND_REAR_DOOR_RH | 1 | ||
| 13 | |||||||||
| 14 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY/WH | 0.35 | X974M | 12 | ||
| 15 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY | 0.35 | X974M | 19 | ||
| 16 | SUMITOMO | 8100-3624 | 0.64x0.64F | BU/WH | 0.35 | X987M | 5 | ||
| 17 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X974M | 17 | ||
| 18 | |||||||||
