X971M - x-lhd-sop9

Tesla Part Number

1042617-00-A

Connector

SUMITOMO 6098-5650

Color

WH

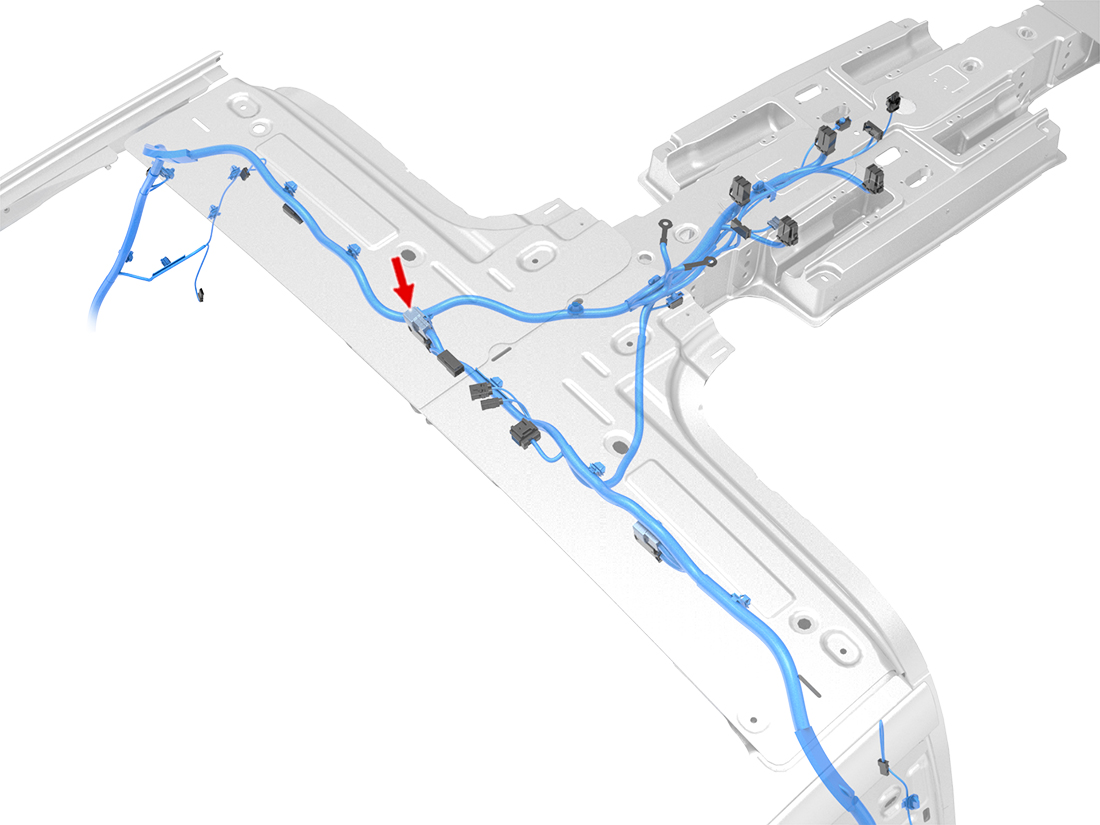

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4924	1.5x0.6M	BU	0.75			X023	3
2	SUMITOMO	8230-4923	1.5x0.6M	RD/GN	2.00			X024	7
3	SUMITOMO	8230-4923	1.5x0.6M	RD	1.50			X925M	12
4	SUMITOMO	8230-4923	1.5x0.6M	BU	1.50			X925M	18
5	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35			X970M	5
6	SUMITOMO	8230-4923	1.5x0.6M	BK/WH	2.00			GND_LB	1
7	SUMITOMO	8230-4925	1.5x0.6M	BK/GY	0.35			X976M	4
8	SUMITOMO	8100-3623	0.64x0.64M	OG	0.35			X201	12
9	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X201	11
10	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X927M	3
11	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X927M	5
12	SUMITOMO	8230-4924	1.5x0.6M	BK	1.00			GND_LB	1
13
14	SUMITOMO	8100-3622	0.64x0.64M	GY/WH	0.35			X970M	16
15	SUMITOMO	8100-3622	0.64x0.64M	GY	0.35			X970M	17
16	SUMITOMO	8100-3622	0.64x0.64M	BU/WH	0.35			X976M	2
17	SUMITOMO	8100-3622	0.64x0.64M	VT	0.35			X970M	15
18
