X974F - x-lhd-sop9

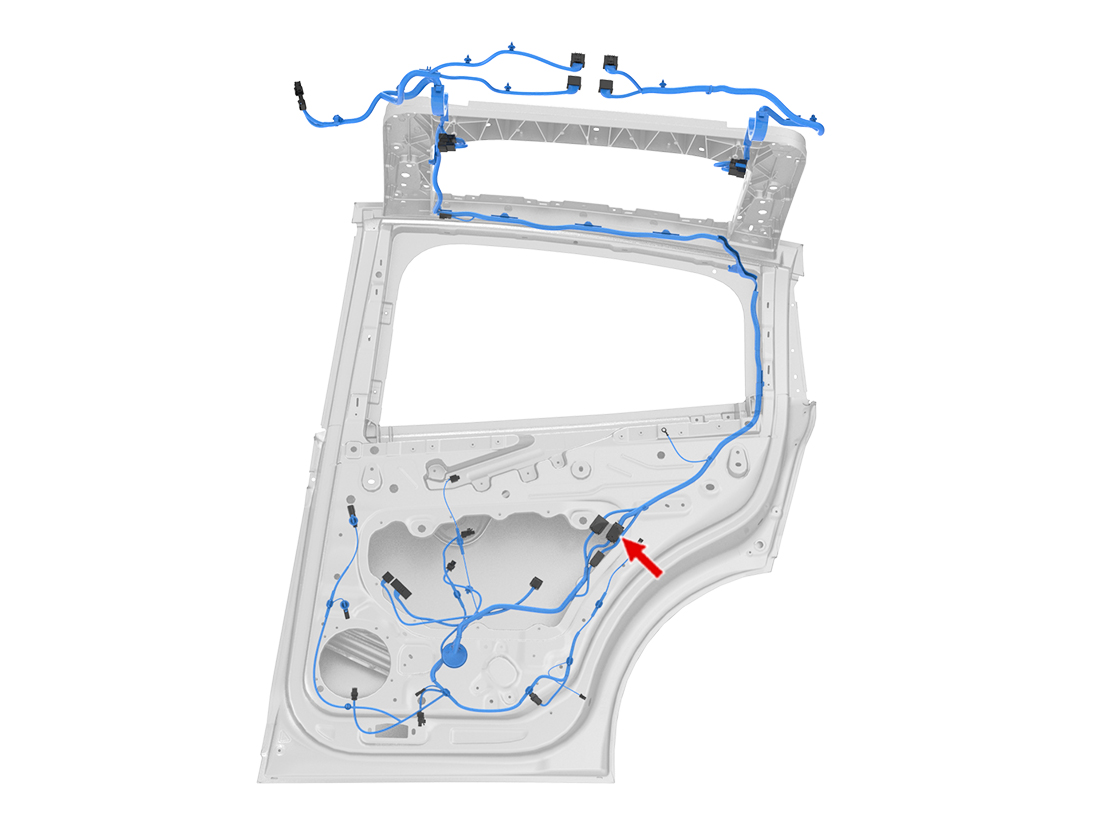

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.50 | X470 | 2 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.50 | X469 | 2 | ||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.50 | X470 | 1 | ||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.50 | X469 | 1 | ||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY | 0.35 | X451 | 13 | ||
| 16 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X451 | 18 | ||
| 17 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X471 | 2 | ||
| 18 | |||||||||
| 19 | |||||||||
| 20 | |||||||||
| 21 | |||||||||
| 22 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY/WH | 0.35 | X451 | 14 | ||
