X974M - x-lhd-sop9

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

BK

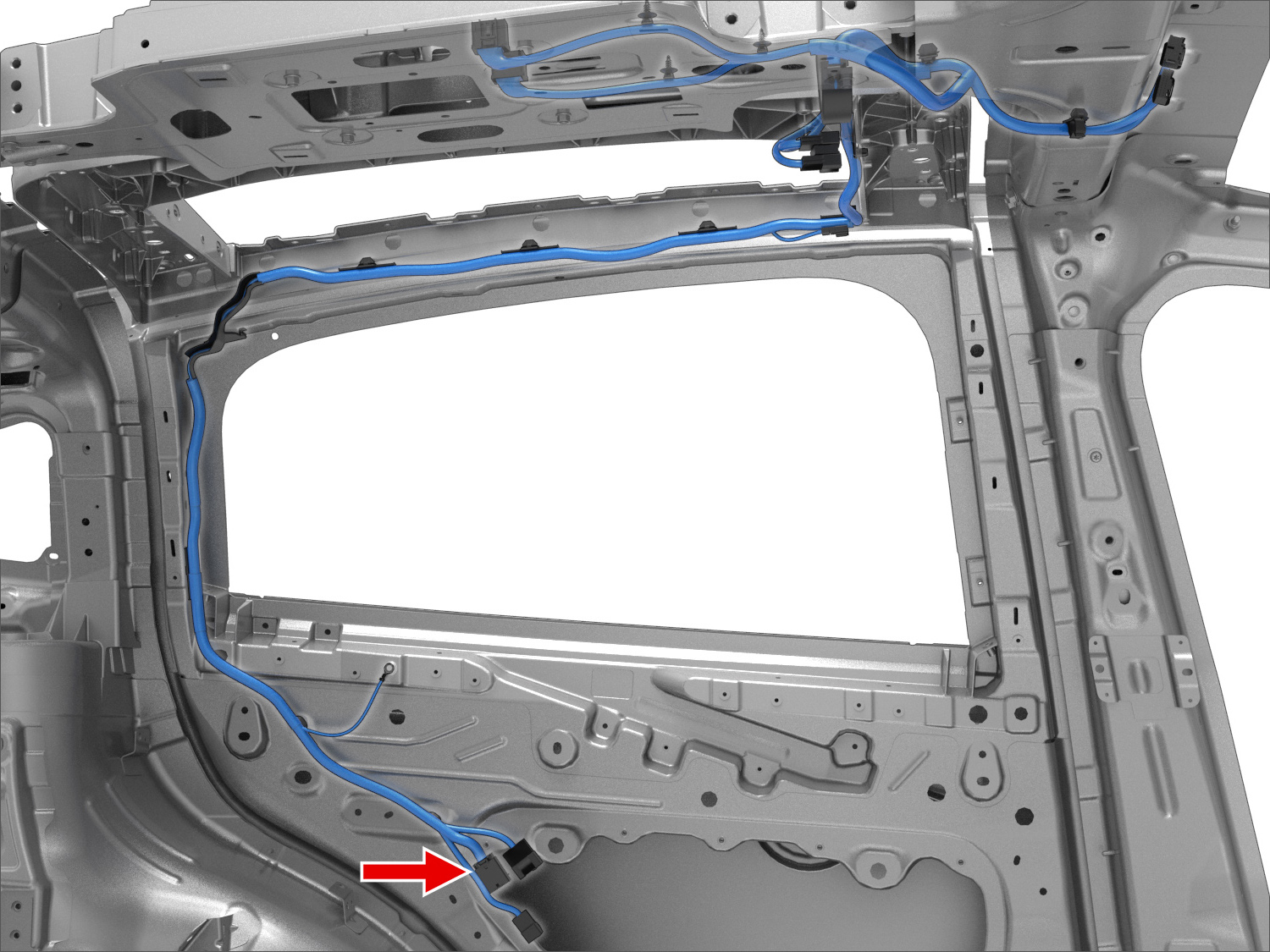

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35			X977F	7
3
4	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35			X977F	18
5
6
7
8	SUMITOMO	8100-3625	0.64x0.64F	BK/WH	0.35			X660	4
9
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X660	1
11
12	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35			X971F	14
13	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X660	2
14
15	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35			X977F	4
16
17	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35			X971F	17
18
19	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35			X971F	15
20	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X660	3
21
22	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35			X977F	2
