X976F - x-lhd-sop9

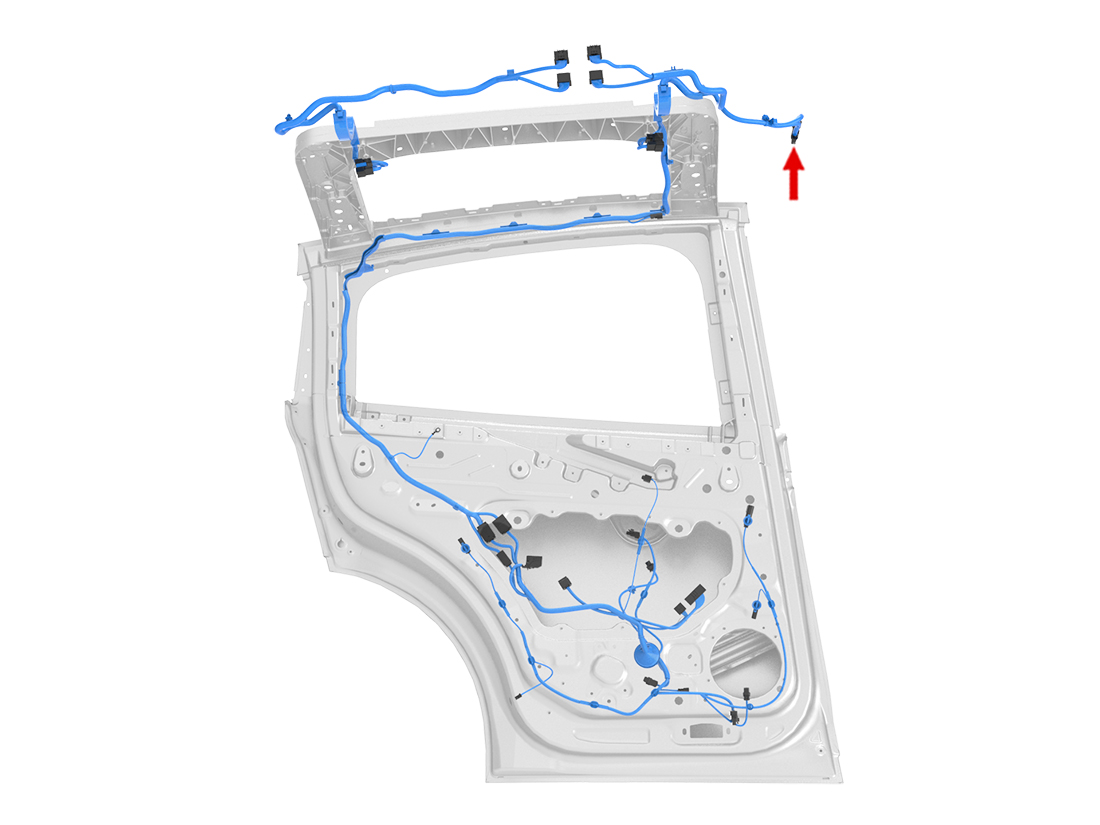

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY | 0.35 | X972M | 19 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY/WH | 0.35 | X972M | 12 | ||
| 5 | |||||||||
| 6 | |||||||||
| 7 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY | 0.35 | X972M | 2 | ||
| 8 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK/GY | 0.35 | X972M | 17 | ||
| 9 | |||||||||
| 10 | SUMITOMO | 8100-3624 | 0.64x0.64F | BU/WH | 0.35 | X972M | 6 | ||
| 11 | |||||||||
| 12 | |||||||||
| 13 | SUMITOMO | 8100-3624 | 0.64x0.64F | BN | 0.35 | X973M | 15 | ||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD | 0.35 | X972M | 4 | ||
| 19 | |||||||||
| 20 | SUMITOMO | 8100-3624 | 0.64x0.64F | BN/WH | 0.35 | X973M | 6 | ||
| 21 | |||||||||
| 22 | |||||||||
