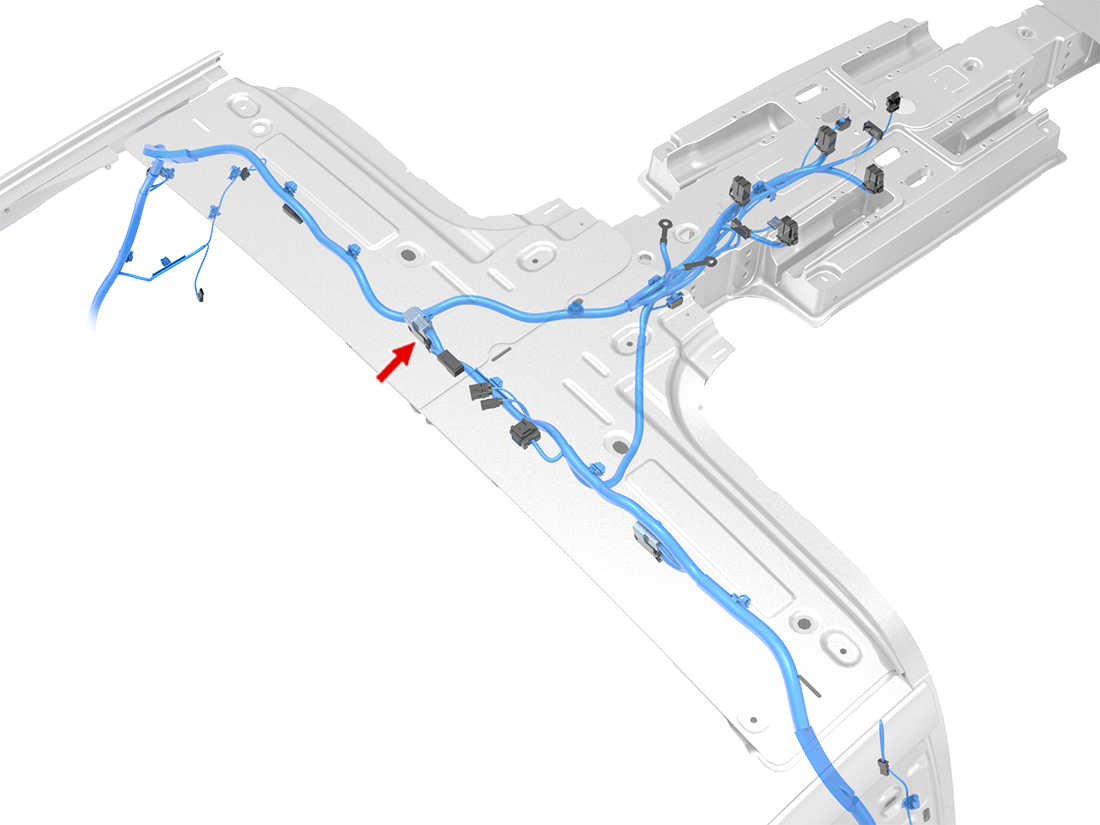

X977M - x-lhd-sop9

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X976M	15
2	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X070	21
3	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X976M	22
4	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X070	20
5
6	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X685	13
7
8	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X701	10
9	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X685	7
10	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X701	21
11	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X685	6
12	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X706	10
13	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X148	3
14
15	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X703	1
16
17	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35	X685	12
18
19	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X706A	21
20	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X148	4
21
22	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X703	12
