X980F - x-lhd-sop9

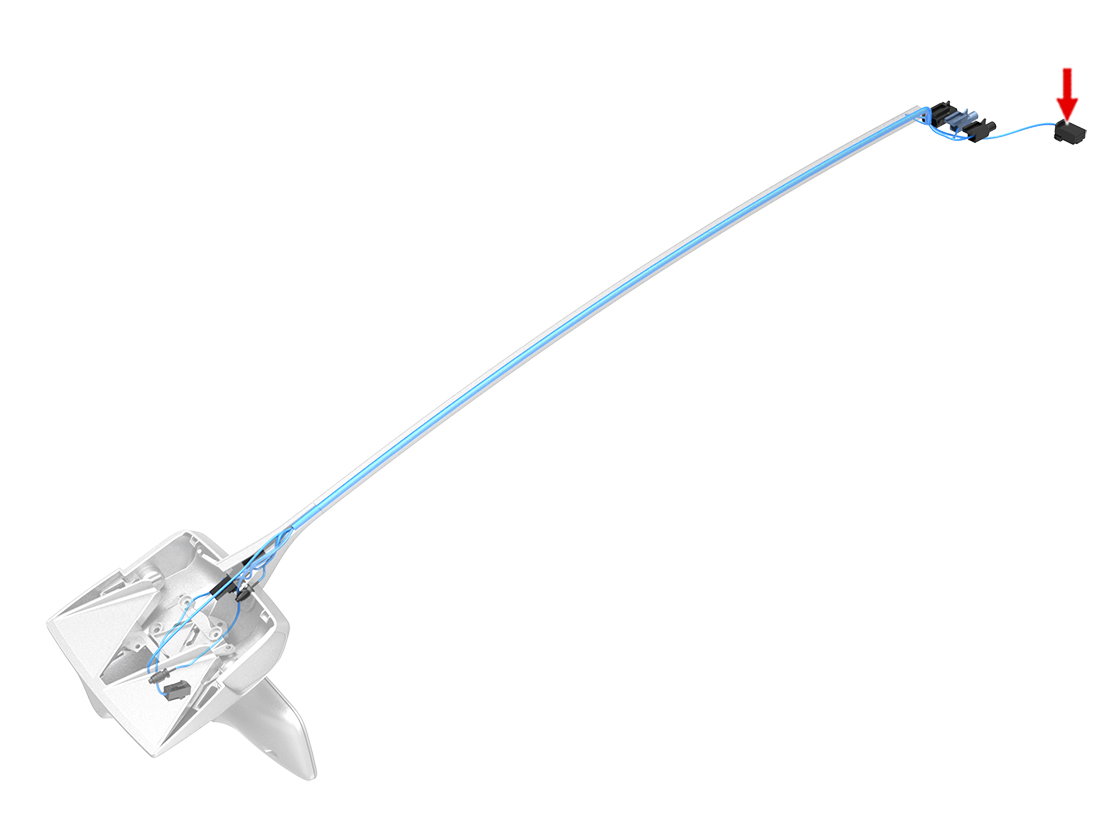

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU/WH | 0.50 | X132 | 1 | ||
| 2 | SUMITOMO | 8240-0182 | 0.64x0.64F | GN | 0.13 | X303 | 3 | ||
| 3 | SUMITOMO | 8240-0182 | 0.64x0.64F | GY | 0.13 | X303 | 2 | ||
| 4 | SUMITOMO | 8240-0182 | 0.64x0.64F | RD | 0.13 | X303 | 1 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.50 | X132 | 2 | ||
| 6 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD/BU | 0.35 | X129 | 1 | ||
| 7 | |||||||||
| 8 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN | 0.35 | X129 | 3 | ||
| 9 | |||||||||
| 10 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | X129 | 2 | ||
