X012 - x-rhd-sop8

Tesla Part Number

1015274-00-A

Connector

MOLEX 31403-6110

Color

BK

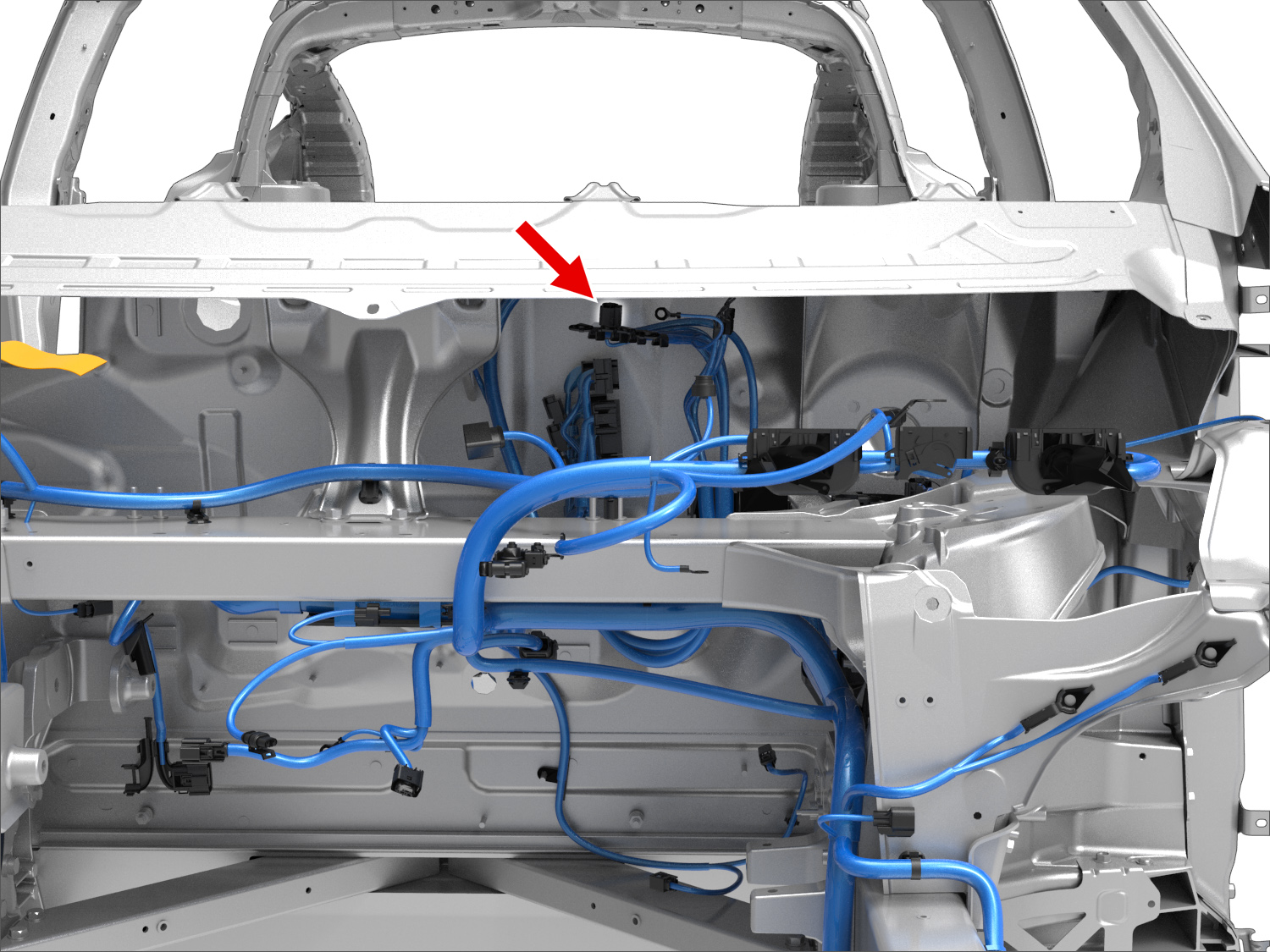

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33468-0022	0.64x0.64F	RD/BK	0.35	TESLA	MAT-120-206	X752	14
2	MOLEX	33468-0022	0.64x0.64F	BN	0.35	TESLA	MAT-120-206	X914M	14
3	MOLEX	33468-0022	0.64x0.64F	WH	0.35	TESLA	MAT-120-206	X914M	4
4	MOLEX	33468-0022	0.64x0.64F	BU	0.35	TESLA	MAT-120-206	X011	1
5	MOLEX	33468-0022	0.64x0.64F	BU	0.35	TESLA	MAT-120-206	X011	2
6	MOLEX	33468-0022	0.64x0.64F	RD/WH	0.35	TESLA	MAT-120-206
