X026 - x-rhd-sop8

Tesla Part Number

1046602-00-A

Connector

DELPHI 13520383

Color

GY

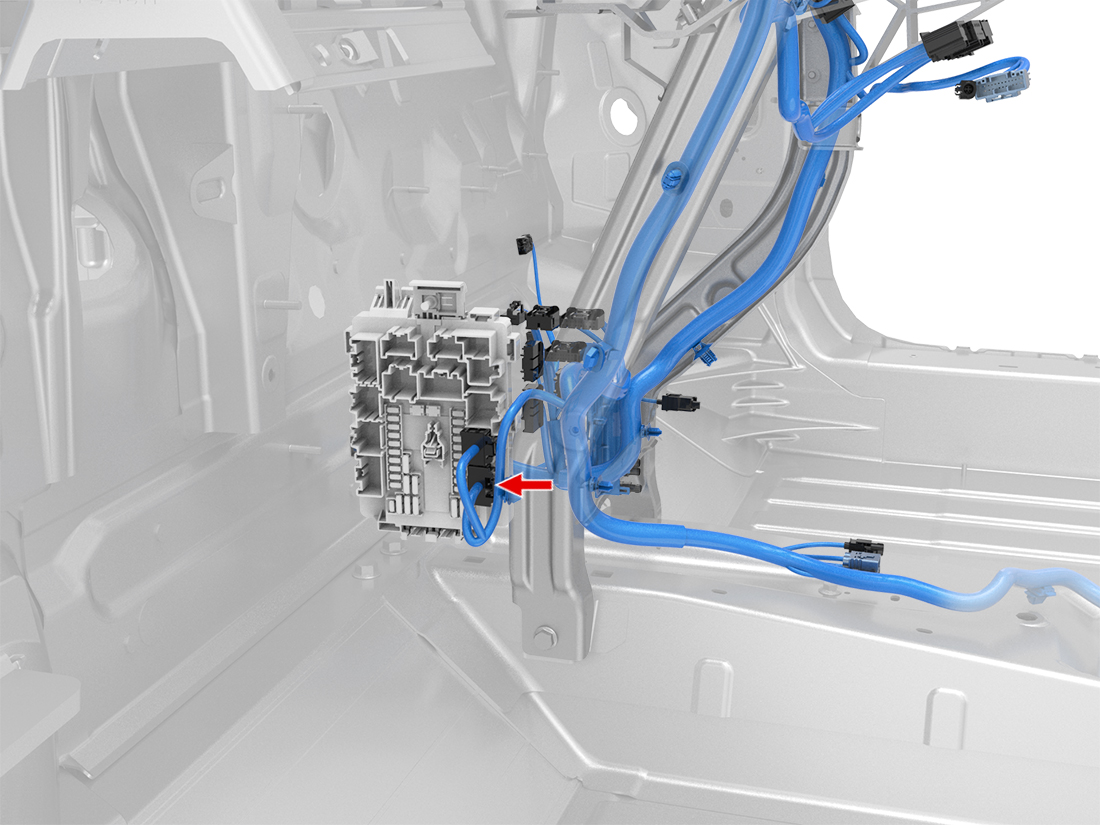

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13526680	1.5x0.6F	BN/WH	0.35			X060	21
2
3	DELPHI	13526680	1.5x0.6F	RD/BU	0.35			X926F	17
4	DELPHI	13526680	1.5x0.6F	BN	0.50			X170	12
5	DELPHI	13526680	1.5x0.6F	GY	0.35			X926F	4
6	DELPHI	13526680	1.5x0.6F	RD/BU	0.35			X728	10
7	DELPHI	13526680	1.5x0.6F	RD	0.35			X177	17
8	DELPHI	13526680	1.5x0.6F	RD/VT	0.50			X915F	10
9	DELPHI	13526680	1.5x0.6F	WH	0.35			X170	13
10
11
12
13	DELPHI	13526680	1.5x0.6F	RD	0.35			X728	6
14	DELPHI	13526680	1.5x0.6F	RD/GN	0.35			X563	1
15	DELPHI	13526680	1.5x0.6F	BU	0.50			X170	3
16	DELPHI	13526680	1.5x0.6F	RD/VT	0.35			X180	4
