X078 - x-rhd-sop8

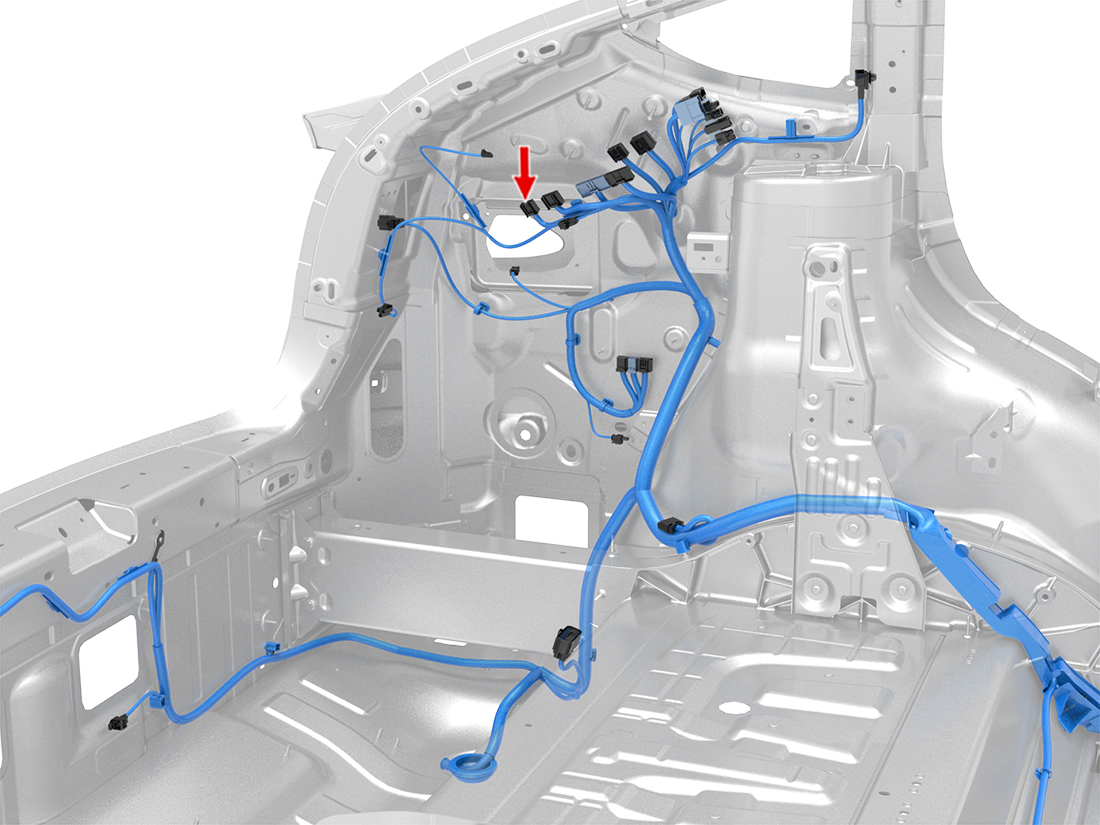

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0213 | 1.5x0.64F | GY/WH | 0.75 | X275 | 5 | ||
| 2 | SUMITOMO | 8240-0213 | 1.5x0.64F | GN | 0.75 | X275 | 3 | ||
| 3 | SUMITOMO | 8240-0213 | 1.5x0.64F | BU | 0.75 | X275 | 4 | ||
| 4 | SUMITOMO | 8240-0213 | 1.5x0.64F | WH | 0.75 | X275 | 2 | ||
| 5 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 0.75 | X275 | 13 | ||
| 6 | SUMITOMO | 8240-0213 | 1.5x0.64F | GY | 0.75 | X275 | 15 | ||
| 7 | |||||||||
| 8 | SUMITOMO | 8240-0215 | 1.5x0.64F | GY/WH | 0.50 | X275 | 12 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
