X093B - x-rhd-sop8

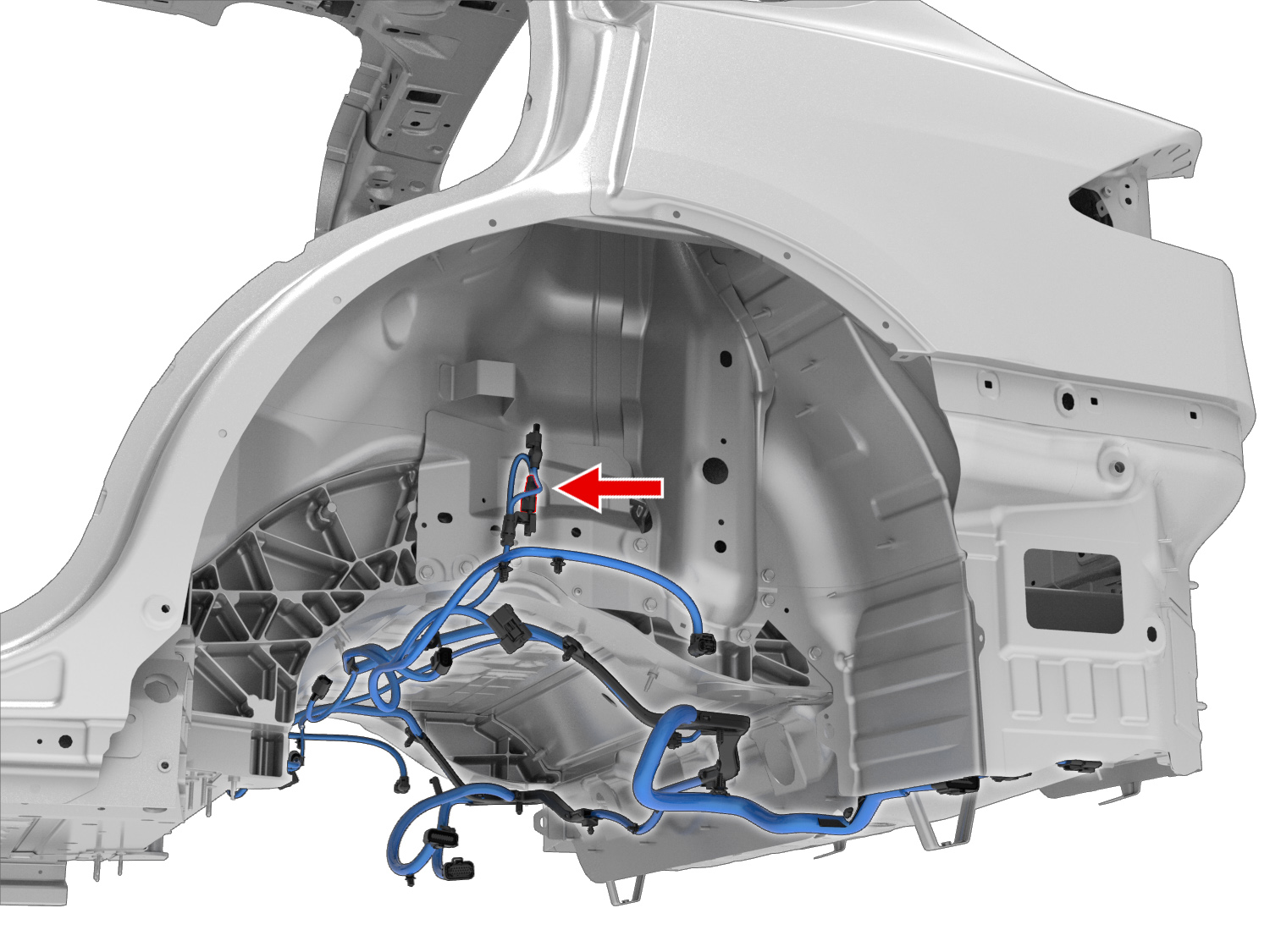

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | BU | 0.35 | X953F | 14 | ||
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | X953F | 13 |
