X127 - x-rhd-sop8

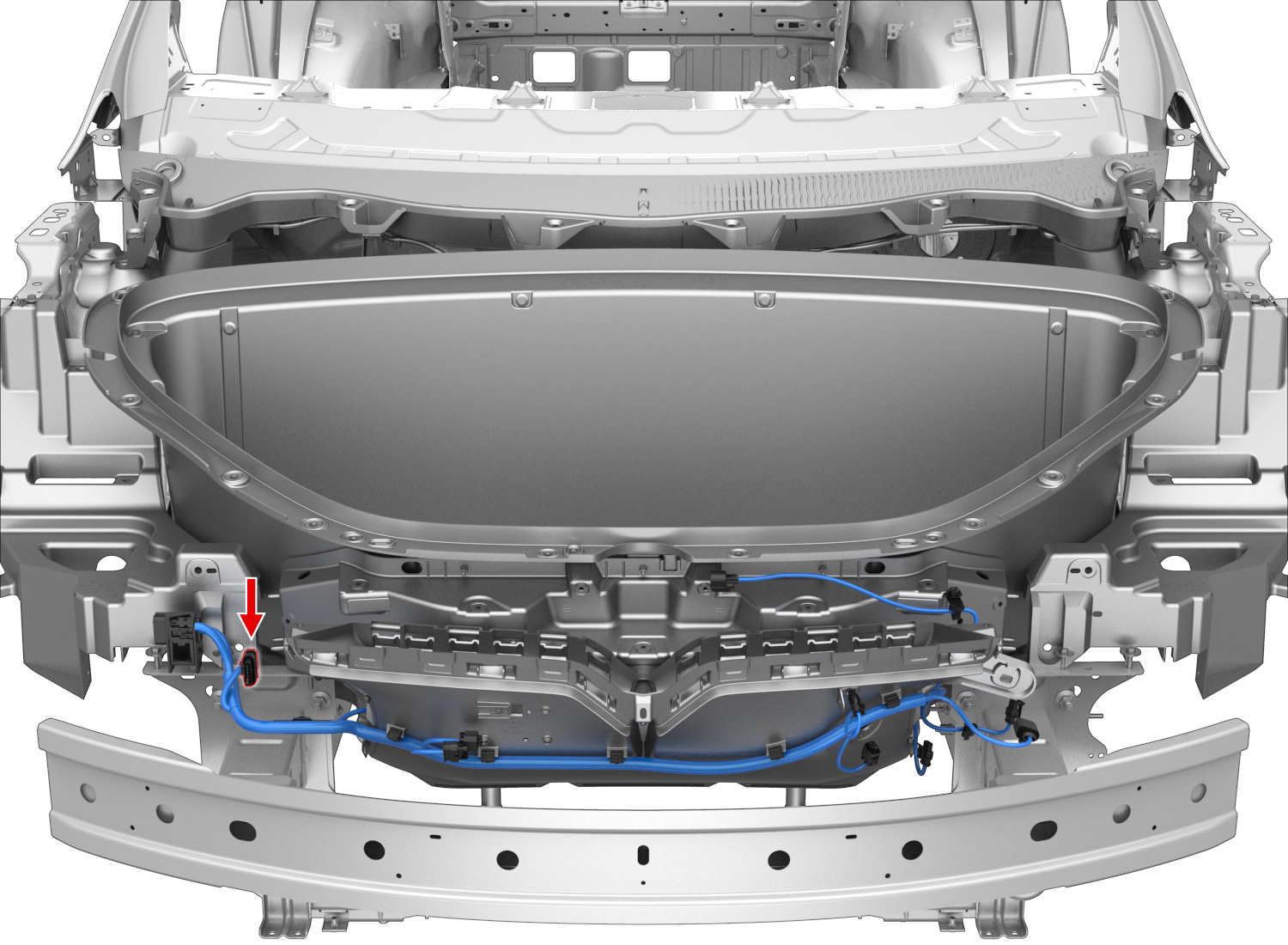

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | BK | 0.50 | AMP | 967067-2 | ||
| 2 | AMP | 7-1452668-1 | 1.2x0.6FS | GY/WH | 0.50 | AMP | 967067-2 | X905M | 3 |
| 3 | AMP | 7-1452668-1 | 1.2x0.6FS | GY | 0.50 | AMP | 967067-2 | X905M | 9 |
| 4 | AMP | 7-1452668-1 | 1.2x0.6FS | BU | 0.50 | AMP | 967067-2 | X906M | 11 |
| 5 | AMP | 7-1452668-1 | 1.2x0.6FS | BU/WH | 0.50 | AMP | 967067-2 | X906M | 6 |
| 6 | AMP | 7-1452668-1 | 1.2x0.6FS | BU | 0.50 | AMP | 967067-2 | X906M | 7 |
| 7 | |||||||||
