X166 - x-rhd-sop8

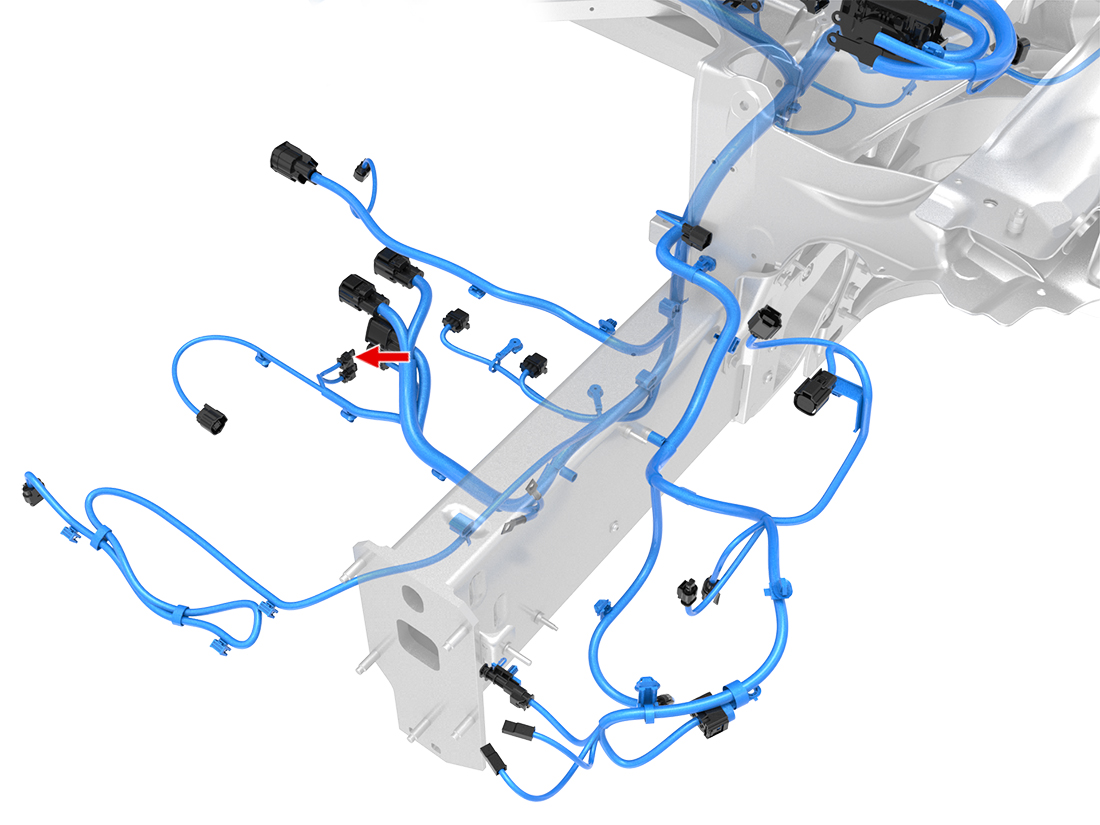

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | RD/WH | 0.75 | AMP | 967067-1 | ||
| 2 | AMP | 7-1452668-1 | 1.2x0.6FS | YE/WH | 0.50 | AMP | 967067-1 | X751 | 1 |
| 3 | AMP | 7-1452668-1 | 1.2x0.6FS | YE | 0.50 | AMP | 967067-1 | X751 | 12 |
