X276 - x-rhd-sop8

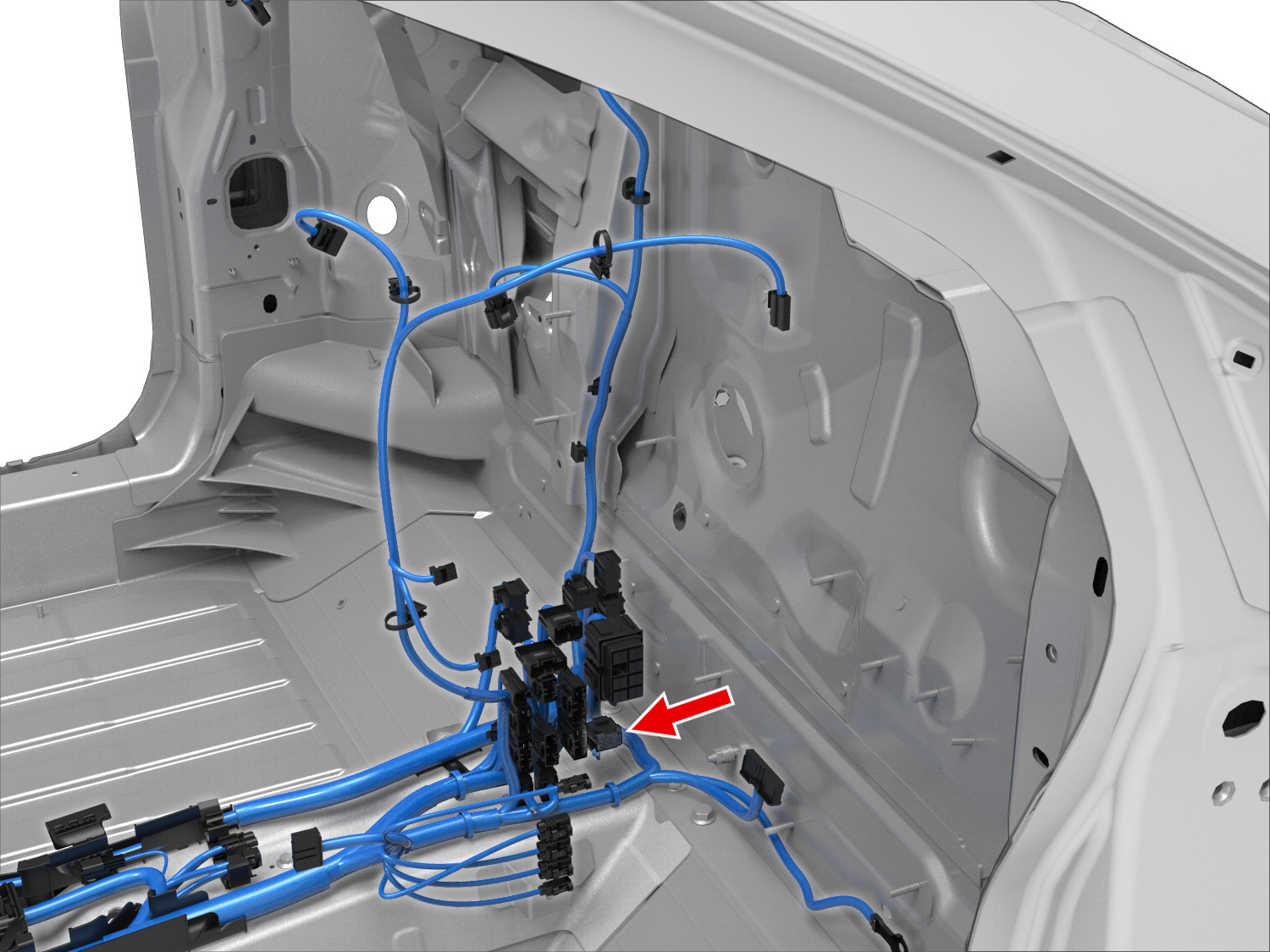

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 282180-1 | 4.8x0.8F | GY/BU | 1.00 | ||||
| 2 | AMP | 282180-1 | 4.8x0.8F | BK | 1.00 | GND_C | 1 | ||
| 3 | AMP | 60249-2 | 6.35x0.8F | RD/GN | 2.00 | X043 | 8 | ||
| 4 | |||||||||
| 5 | AMP | 60249-2 | 6.35x0.8F | RD | 2.00 | X275 | 1 | ||
