X342 - x-rhd-sop8

Tesla Part Number
1015005-00-B
Connector
DELPHI 13623681
Color
BK

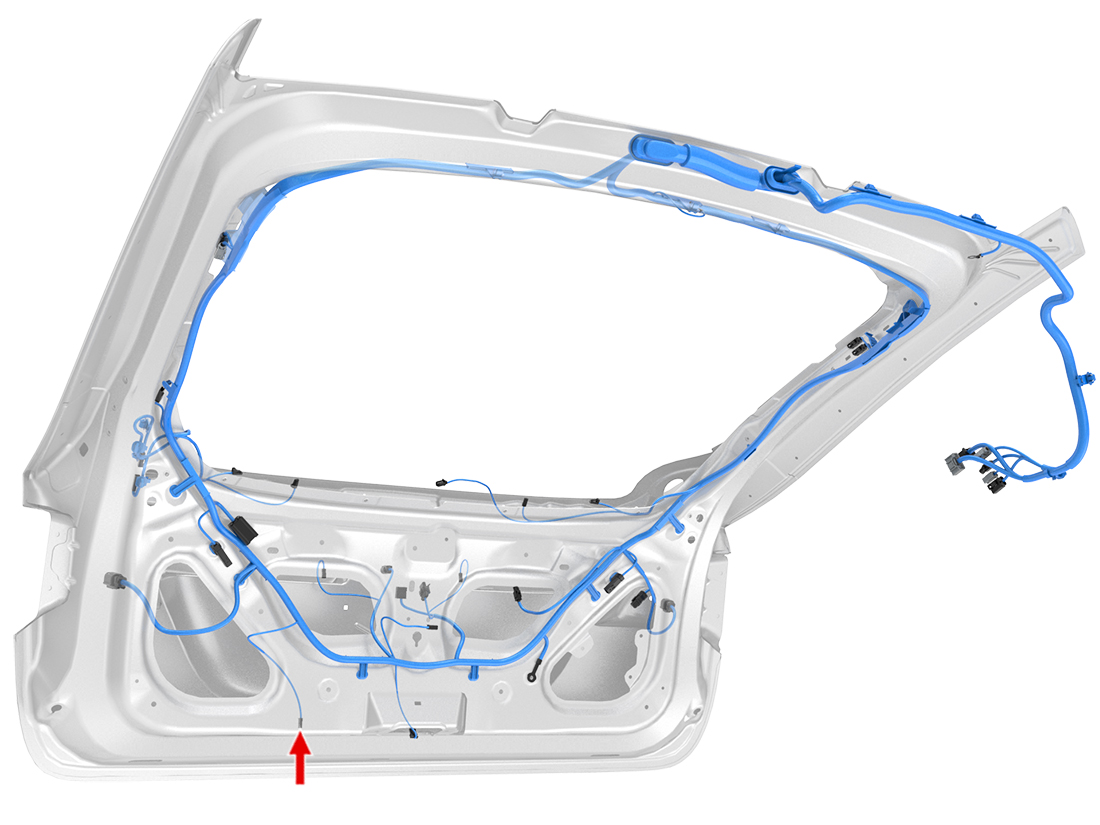

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FGN0.35X955F21
2AMP5-928999-10.63x0.63FBK0.35GND_LG1
3AMP5-928999-10.63x0.63FBU0.35X955F10
