X368 - x-rhd-sop8

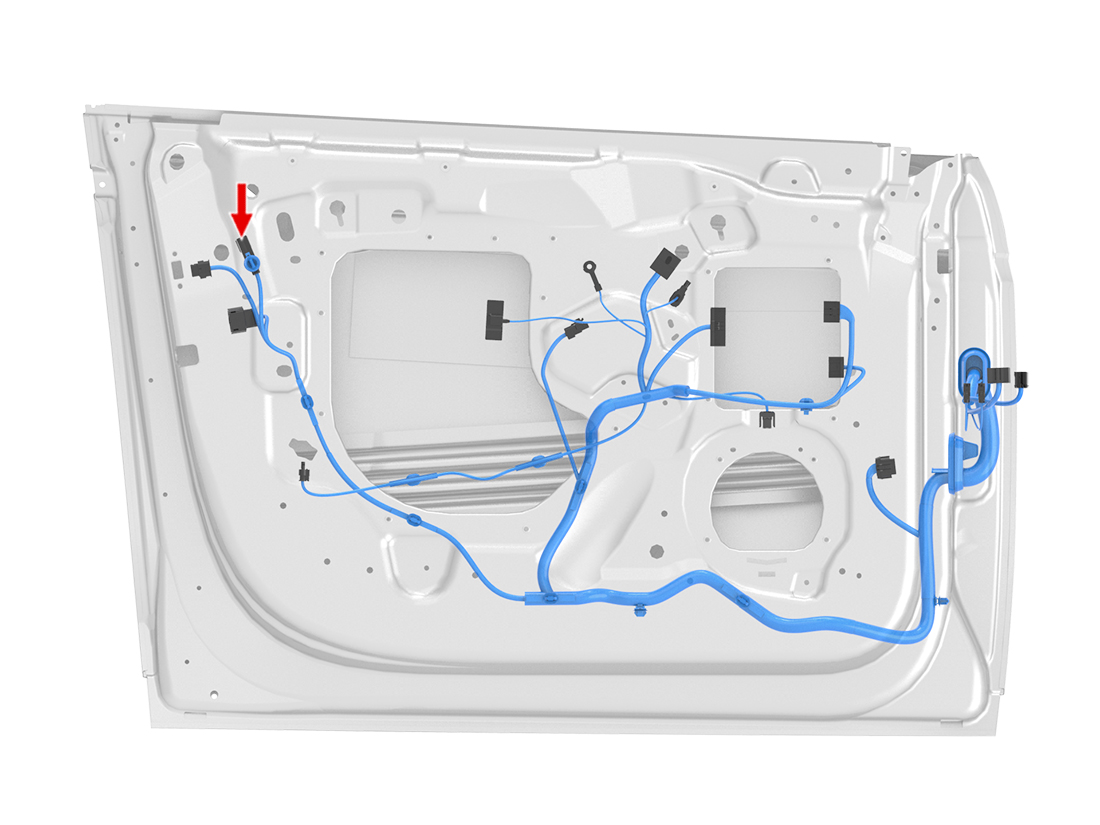

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0004 | 1.5x0.8M | VT | 0.50 | TESLA | MAT-120-240 | X361 | 10 |
| 2 | MOLEX | 33000-0004 | 1.5x0.8M | GN | 0.50 | TESLA | MAT-120-240 | X361 | 19 |
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | GY | 0.50 | TESLA | MAT-120-240 | X361 | 27 |
| 4 | |||||||||
