X376 - x-rhd-sop8

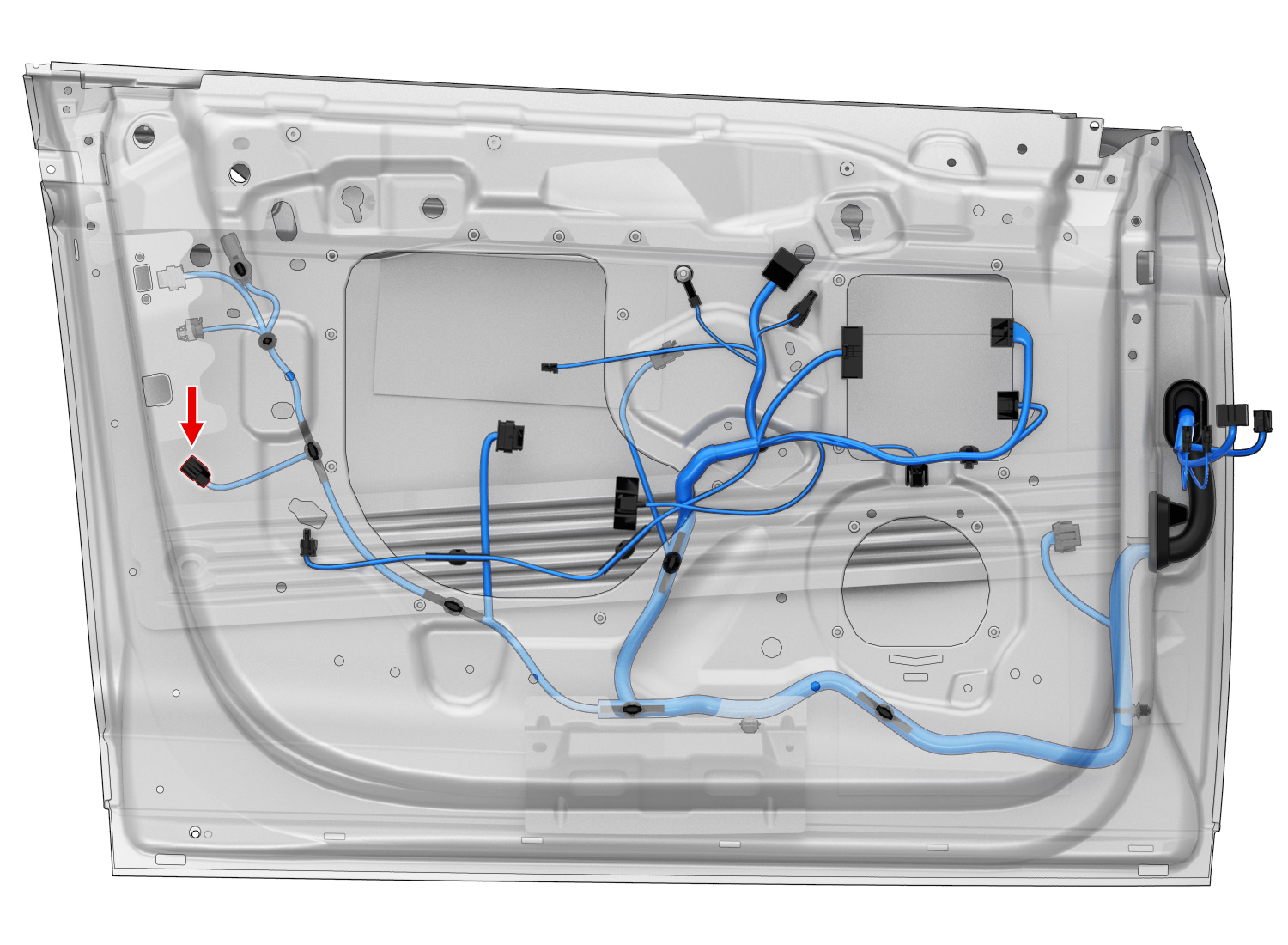

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33468-0002 | 0.64x0.64F | VT/WH | 0.35 | TESLA | MAT-120-206 | X361 | 33 |
| 2 | MOLEX | 33468-0002 | 0.64x0.64F | BU/WH | 0.35 | TESLA | MAT-120-206 | X361 | 34 |
| 3 | MOLEX | 33468-0002 | 0.64x0.64F | BK | 0.35 | TESLA | MAT-120-206 | GND_A_LH_2 | 1 |
