X420 - x-rhd-sop8

Tesla Part Number

1043176-00-A

Connector

SUMITOMO 6098-4756

Color

WH

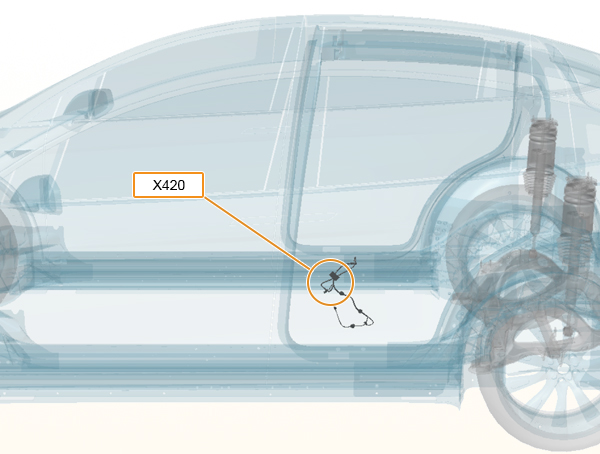

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X432	3
2	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X431	1
3	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X430	1
4
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X429	1
6	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X429	2
7
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X448	2
9	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X448	1
10
11
12
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X432	2
14	SUMITOMO	8100-3625	0.64x0.64F	BK/VT	0.35			X431	2
15
16	SUMITOMO	8100-3625	0.64x0.64F	BK/WH	0.35			X430	2
17
18
19
20
21
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X432	4
23	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X432	1
24	SUMITOMO	8100-3625	0.64x0.64F	BK/GY	0.35			X448	3
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X585	1
26	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X585	2
27
28
