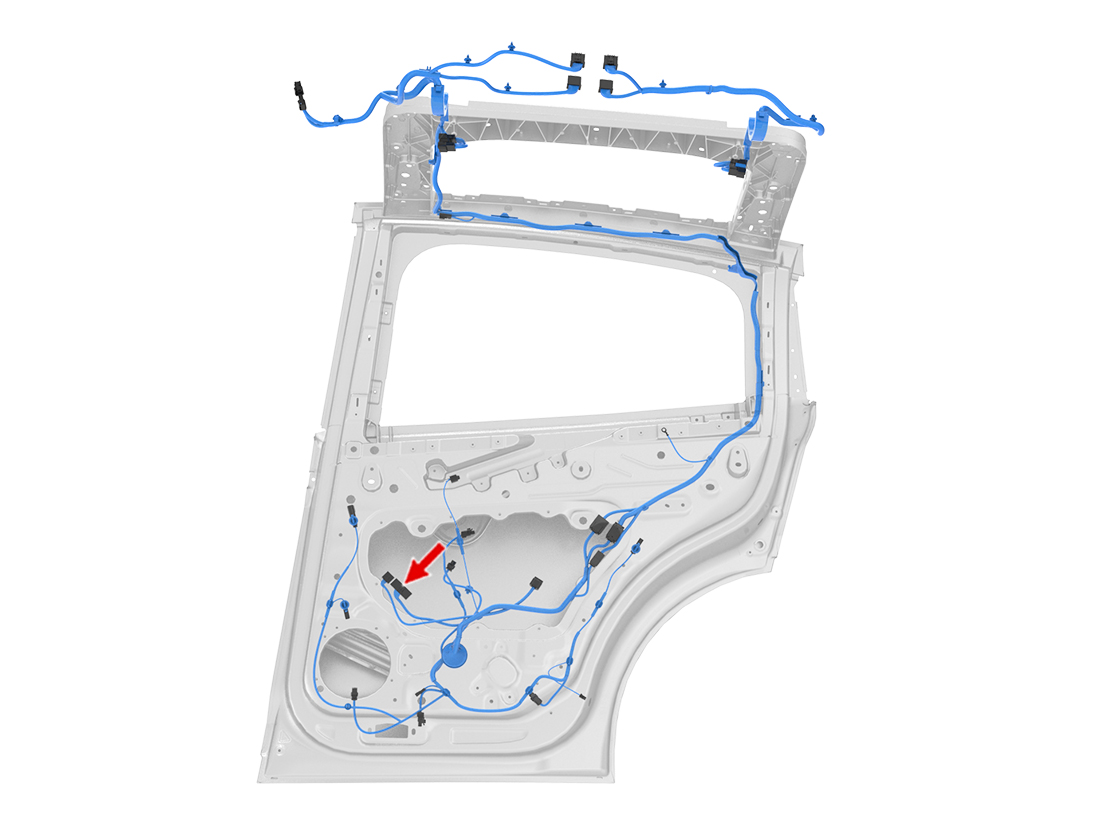

X451 - x-rhd-sop8

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X463	5
2
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X464	3
4
5
6	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35	X975F	15
7	SUMITOMO	8100-3624	0.64x0.64F	BN/WH	0.35	X975F	6
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X628	4
9	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.50	X628	3
10	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35	X975F	3
11	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35	X975F	13
12
13	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X974F	15
14	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35	X974F	22
15	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.50	X628	1
16
17
18	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X974F	16
19	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35
20
21
22
23	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	GND_JC_RRD_F	6
24	SUMITOMO	8100-3624	0.64x0.64F	RD	0.35	GND_JC_RRD_F	3
25	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.50	X455	3
26	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35	X975F	7
27	SUMITOMO	8100-3624	0.64x0.64F	BK/GY	0.35
28	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X463	6
29	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X463	1
30	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.50	X455	1
31
32	SUMITOMO	8100-3625	0.64x0.64F	RD/BU	0.35	X464	1
33
34
35	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X455	2
36
37
38
39	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.50	X629	2
40	SUMITOMO	8100-3625	0.64x0.64F	RD/BK	0.50	X629	1
