X486 - x-rhd-sop8

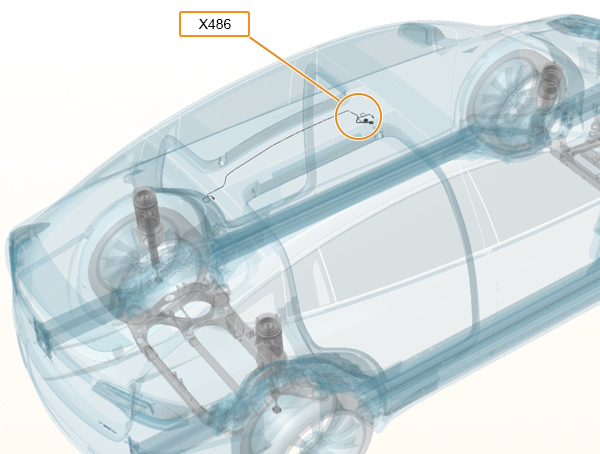

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | JAE | M34S75C4F1 | 0.8x0.64F | BK | 0.35 | X981F | 9 | ||
| 2 | JAE | M34S75C4F1 | 0.8x0.64F | GN | 0.35 | X981F | 7 | ||
| 3 | |||||||||
| 4 | JAE | M34S75C4F1 | 0.8x0.64F | RD/BU | 0.35 | X981F | 6 | ||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | |||||||||
