X510 - x-rhd-sop8

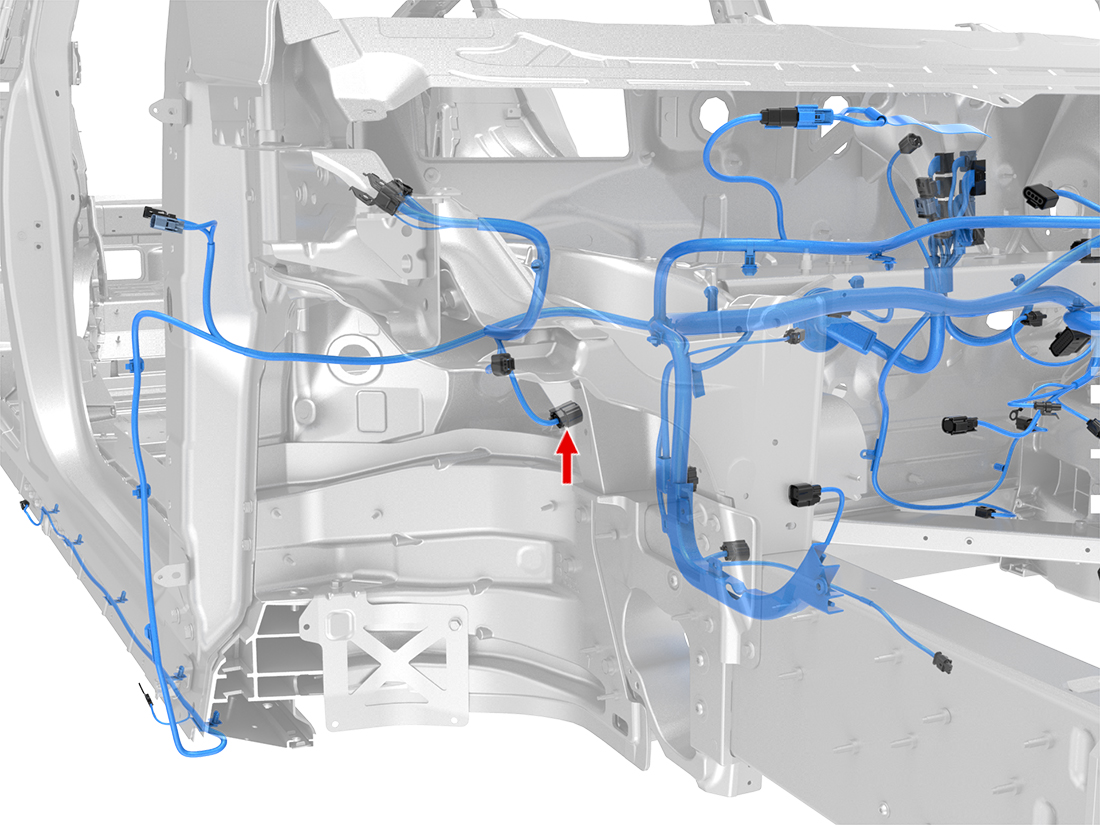

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0264 | 2.3x0.64FS | RD/VT | 1.00 | SUMITOMO | 7165-0473 | X001 | 31 |
| 2 | SUMITOMO | 8240-0264 | 2.3x0.64FS | BK | 1.00 | SUMITOMO | 7165-0473 | GND_FR_RH2 | 1 |
| 3 | SUMITOMO | 8240-0263 | 2.3x0.64FS | GN/WH | 0.35 | SUMITOMO | 7165-0474 | X501 | 15 |
| 4 | SUMITOMO | 8240-0263 | 2.3x0.64FS | BU/WH | 0.35 | SUMITOMO | 7165-0474 | X501 | 5 |
