X568 - x-rhd-sop8

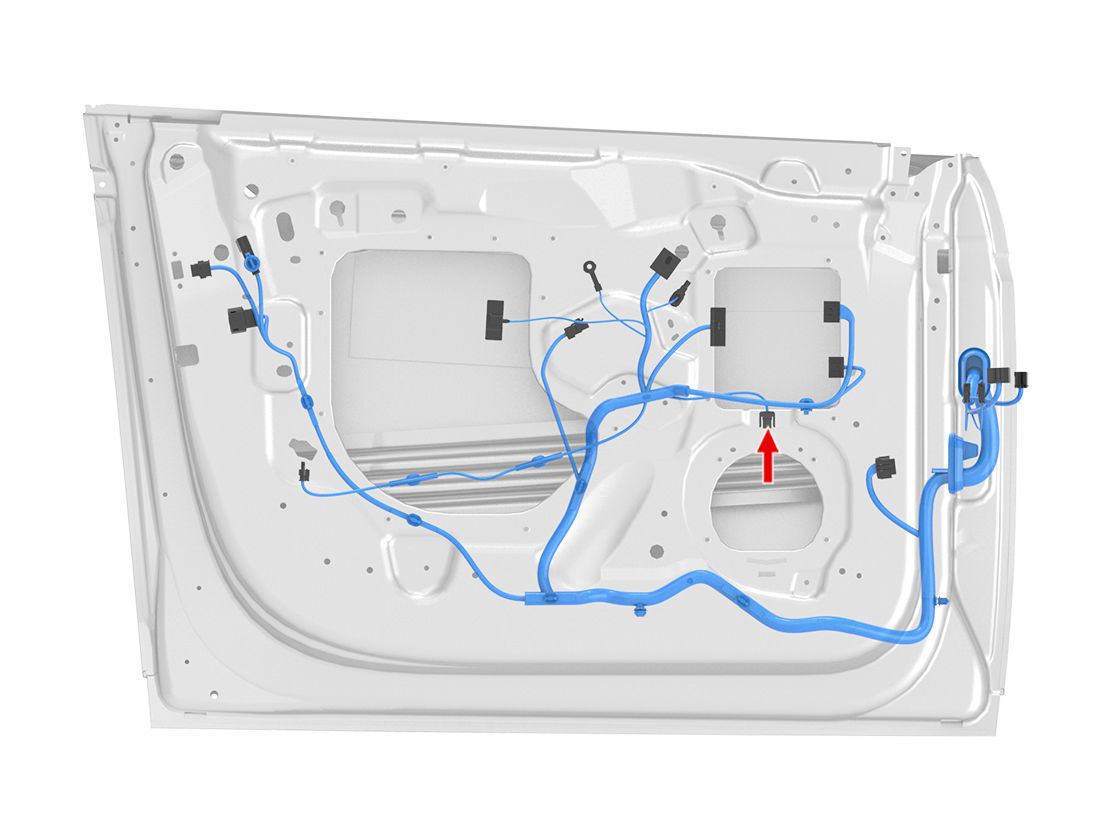

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 927771-1 | 2.8x0.8F | BU/WH | 1.00 | X920F | 10 | ||
| 2 | AMP | 927771-1 | 2.8x0.8F | BU | 1.00 | X920F | 18 |
