X600 - x-rhd-sop8

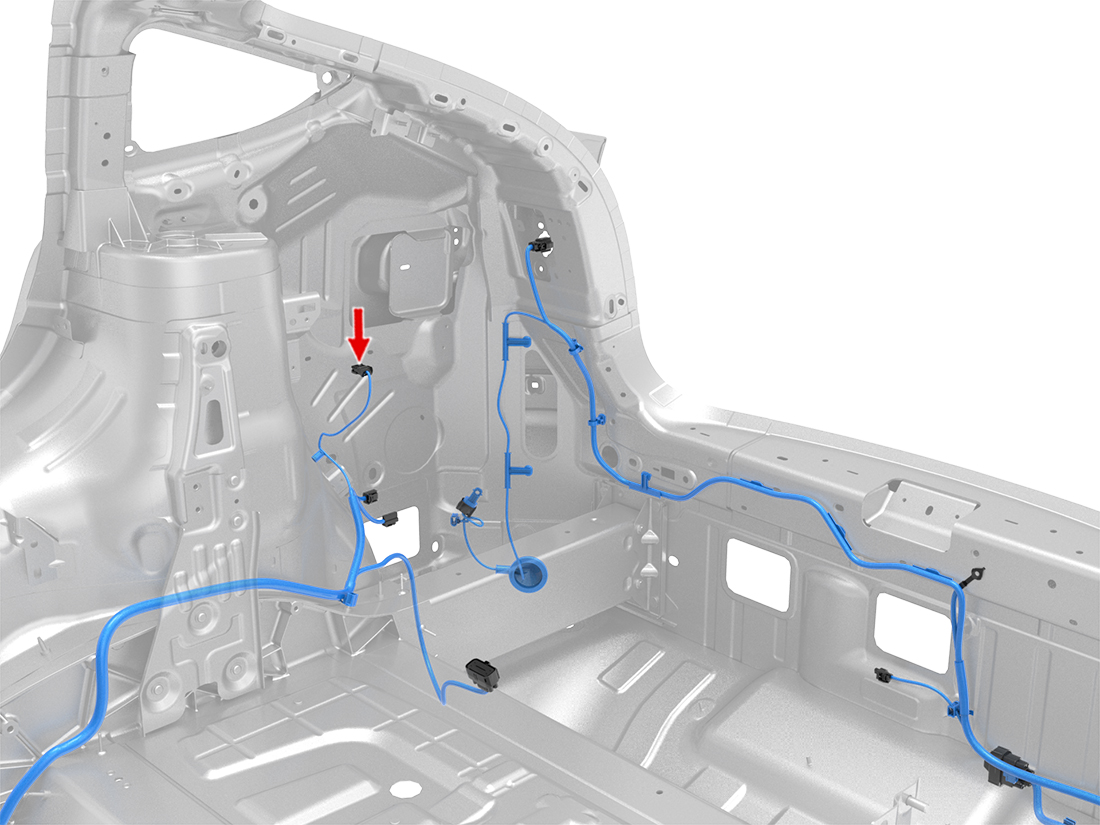

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3021 | 1.5x0.8F | BU | 1.50 | X925M | 1 | ||
| 2 | MOLEX | 33012-3021 | 1.5x0.8F | BK | 1.50 | X925M | 2 | ||
| 3 | |||||||||
| 4 | |||||||||
