X616 - x-rhd-sop8

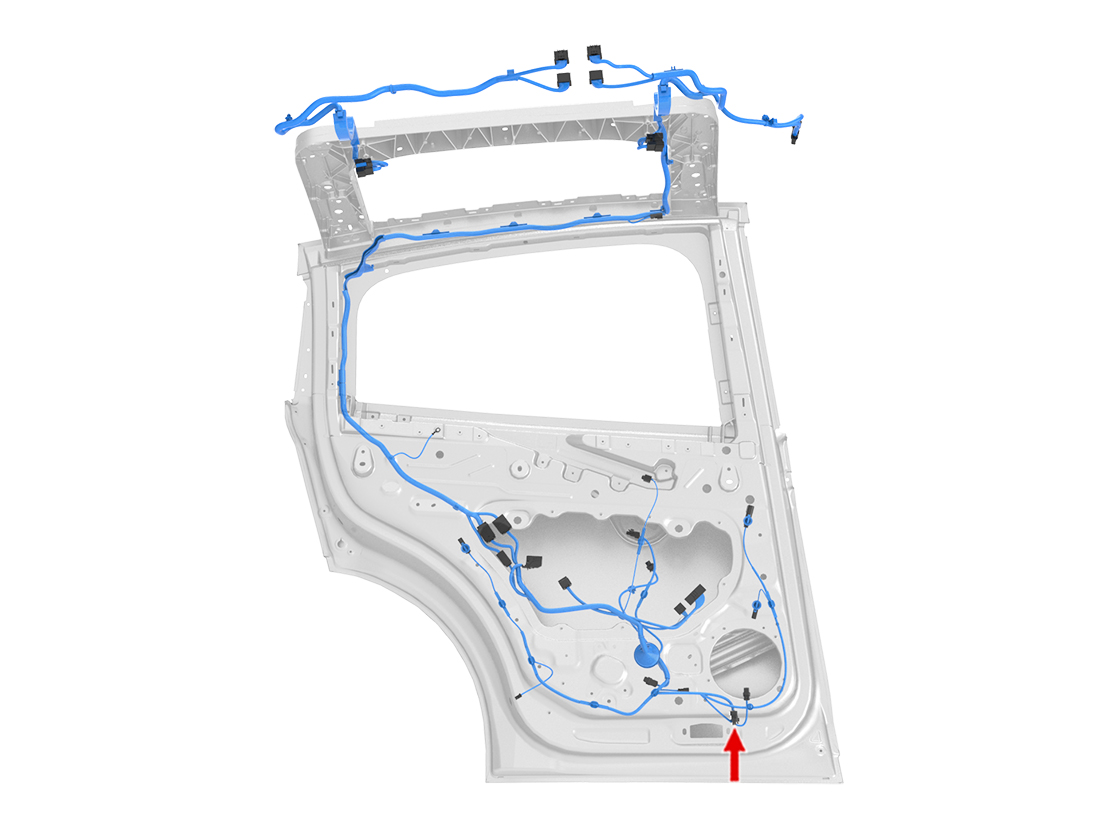

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 211CC2S1160P | 1.5x0.8F | RD/WH | 0.50 | TESLA | MAT-140-280 | X421 | 15 |
| 2 | FCI | 211CC2S1160P | 1.5x0.8F | BK/BU | 0.50 | TESLA | MAT-140-280 | GND_JC_LRD_F | 11 |
| 3 | FCI | 211CC2S1160P | 1.5x0.8F | VT/WH | 0.50 | TESLA | MAT-140-280 | X421 | 9 |
| 4 | FCI | 211CC2S1160P | 1.5x0.8F | GN | 0.50 | TESLA | MAT-140-280 | X421 | 8 |
