X660 - x-rhd-sop8

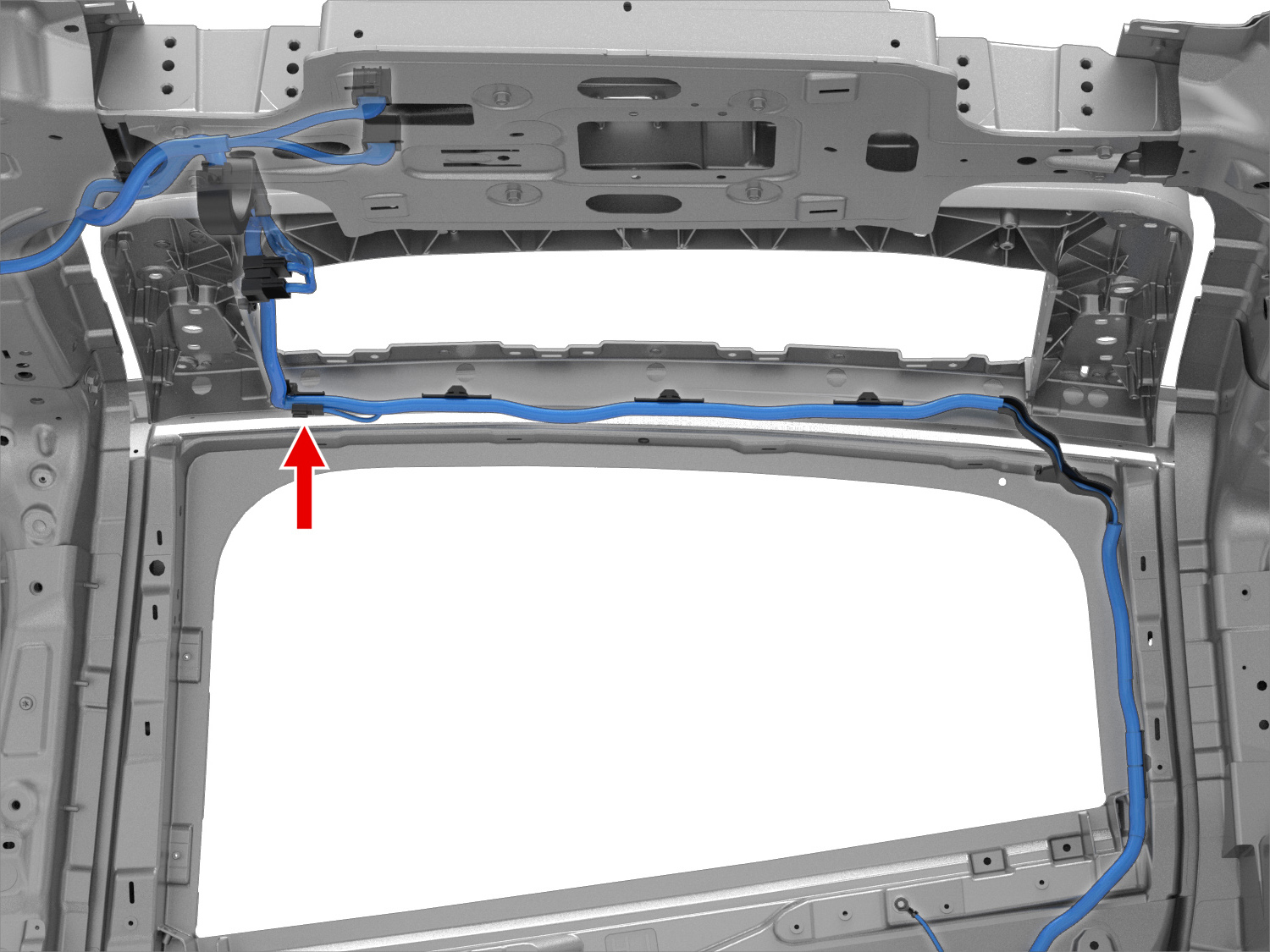

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1-928918-1 | 0.63x0.63M | GN | 0.35 | X974M | 10 | ||
| 2 | AMP | 1-928918-1 | 0.63x0.63M | GY/WH | 0.35 | X974M | 13 | ||
| 3 | AMP | 1-928918-1 | 0.63x0.63M | GY | 0.35 | X974M | 20 | ||
| 4 | AMP | 1-928918-1 | 0.63x0.63M | BK/WH | 0.35 | X974M | 8 | ||
| 5 | |||||||||
