X694 - x-rhd-sop8

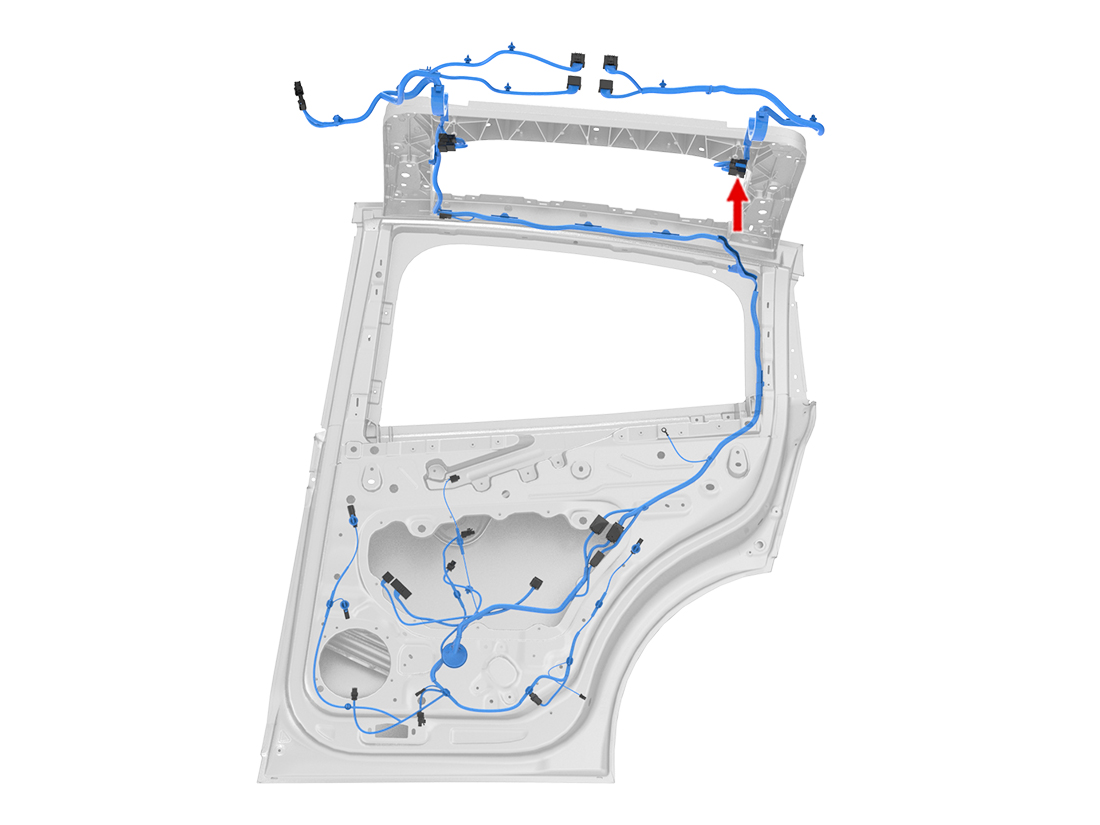

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4923 | 1.5x0.6M | RD | 2.00 | X674 | 11 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | GY | 0.35 | X674 | 10 | ||
| 3 | SUMITOMO | 8230-4925 | 1.5x0.6M | RD | 0.35 | X674 | 7 | ||
| 4 | SUMITOMO | 8230-4925 | 1.5x0.6M | BU | 0.35 | X674 | 8 | ||
| 5 | SUMITOMO | 8230-4925 | 1.5x0.6M | BK | 0.35 | X674 | 6 | ||
| 6 | SUMITOMO | 8230-4923 | 1.5x0.6M | BU | 2.00 | X674 | 12 | ||
| 7 | |||||||||
| 8 | SUMITOMO | 8230-4925 | 1.5x0.6M | SI | 0.35 | X674 | 14 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | SUMITOMO | 8230-4925 | 1.5x0.6M | SI | 0.35 | X674 | 5 | ||
| 12 | |||||||||
