X752 - x-rhd-sop8

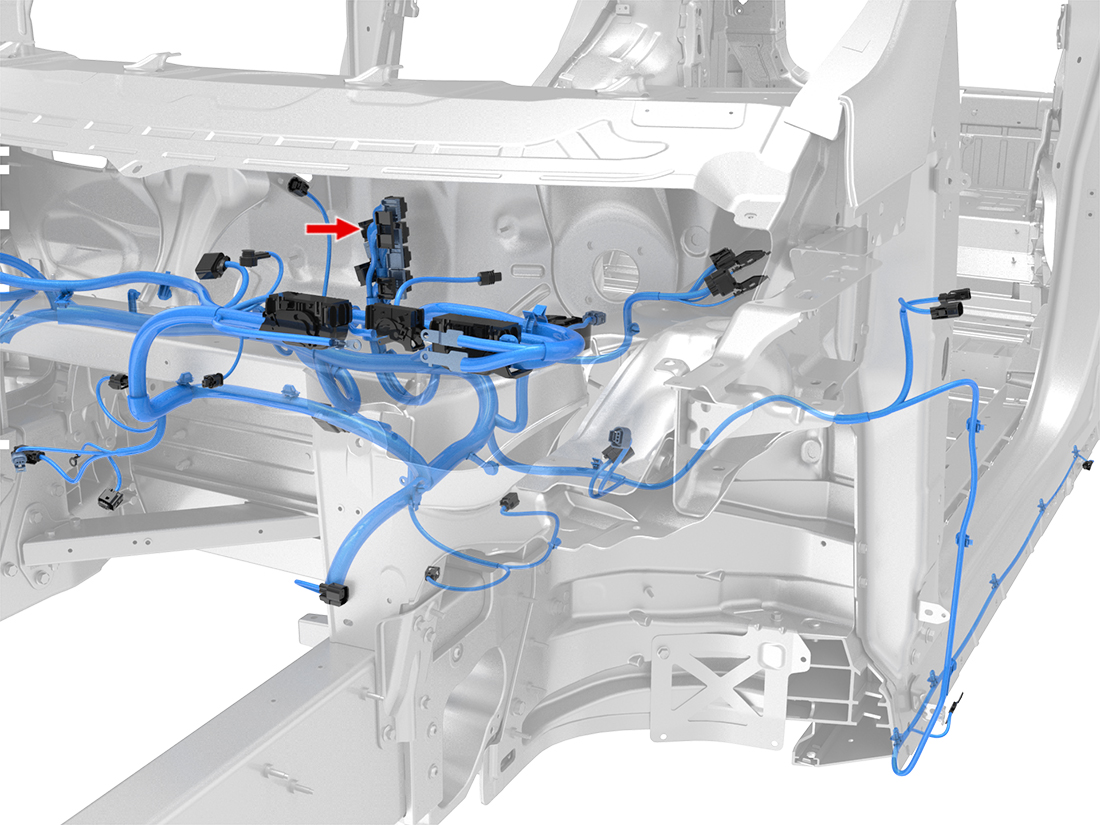

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.50 | X506 | 2 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.50 | X906F | 5 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN/WH | 0.50 | X521 | 1 | ||
| 4 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN/WH | 0.35 | X502 | 3 | ||
| 5 | SUMITOMO | 8240-0182 | 0.64x0.64F | BN | 0.13 | X052 | 3 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.50 | X901M | 14 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.50 | X260 | 5 | ||
| 8 | |||||||||
| 9 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD/WH | 0.35 | X502 | 5 | ||
| 10 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD/WH | 0.35 | X515 | 4 | ||
| 11 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD/WH | 0.35 | X514 | 4 | ||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BK | 0.50 | X910F | 10 | ||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BK | 0.50 | X101 | 1 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BK | 0.35 | X012 | 1 | ||
| 15 | |||||||||
| 16 | SUMITOMO | 8240-0182 | 0.64x0.64F | VT | 0.13 | X052 | 14 | ||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.50 | X901M | 18 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.50 | X261 | 5 | ||
| 19 | |||||||||
| 20 | |||||||||
| 21 | |||||||||
| 22 | |||||||||
