X896 - x-rhd-sop8

Tesla Part Number
1099356-00-A
Connector
ROSENBERGER 59Z127-000-A
Color
BK

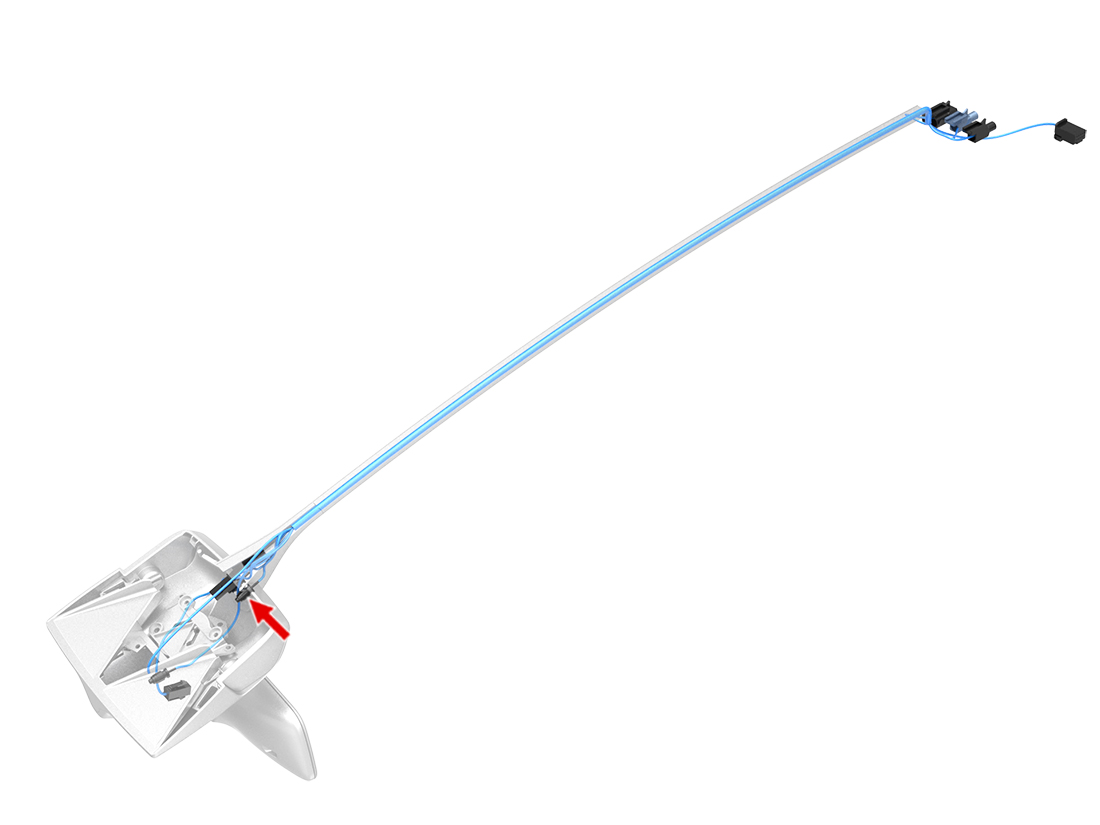

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-COAX-MCOAXBKRG316X894M1
2GENPIA-COAX-MCOAXBKRG316X894M2
