X903M - x-rhd-sop8

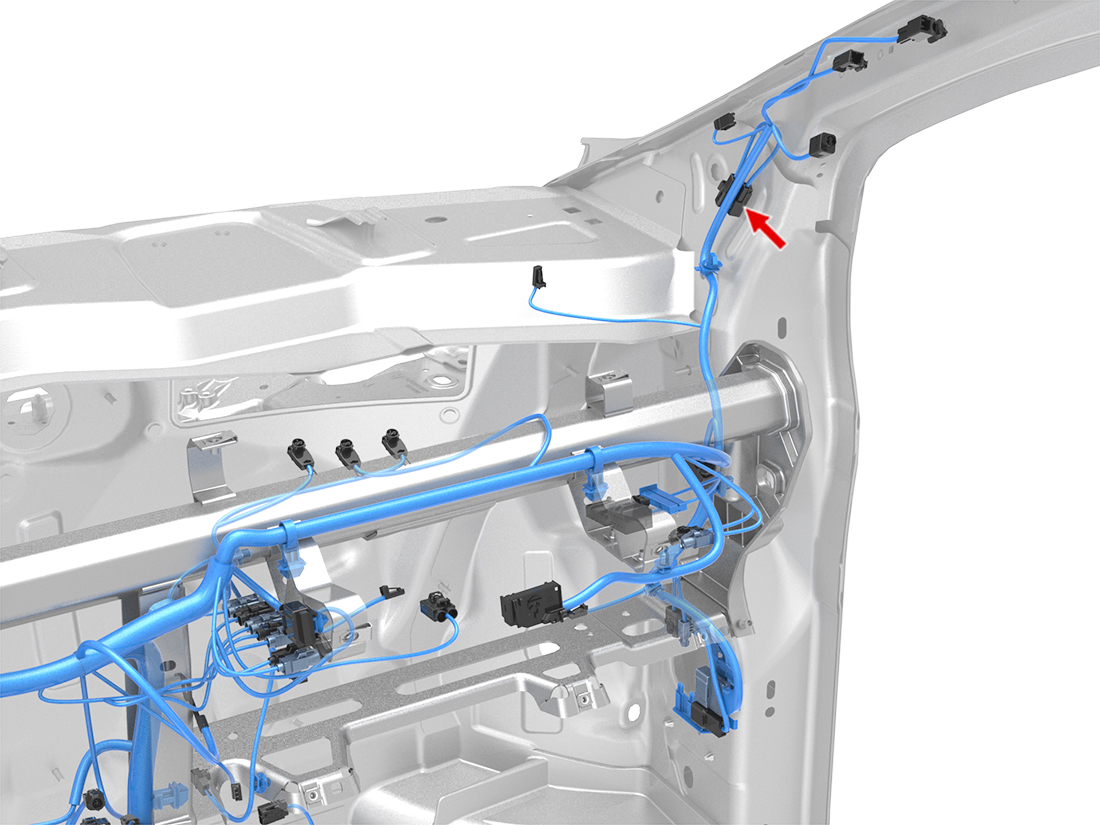

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 173645-2 | 1.8x0.64M | GN | 1.00 | X926F | 18 | ||
| 2 | AMP | 173645-2 | 1.8x0.64M | BK | 1.00 | GND_IP_R | 1 |
