X905F - x-rhd-sop8

Tesla Part Number

1005315-00-A

Connector

MOLEX 33472-1202

Color

GY

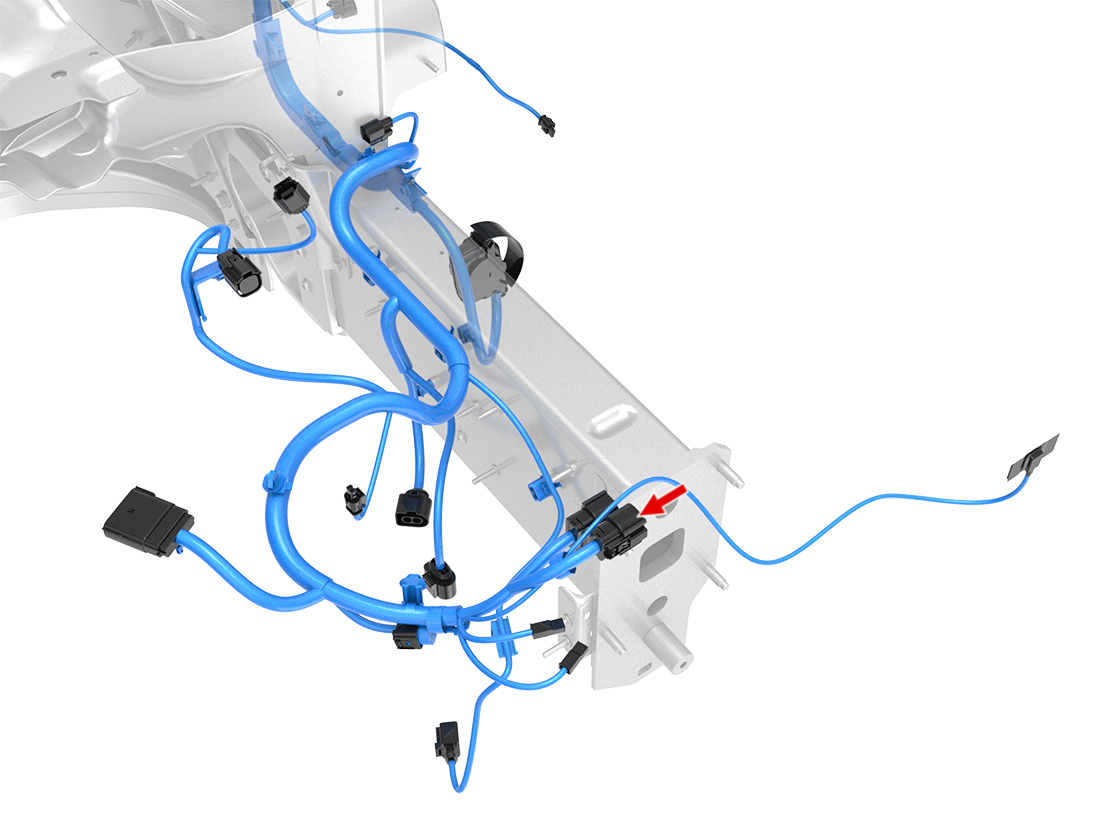

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3003	1.5x0.8F	BU	0.50	TESLA	MAT-120-240	X911F	8
2	MOLEX	33012-3003	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X911F	4
3	MOLEX	33012-3003	1.5x0.8F	GY/WH	0.50	TESLA	MAT-120-240	X914M	9
4	MOLEX	33012-3003	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X051	25
5	MOLEX	33012-3003	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X051	26
6	MOLEX	33012-3003	1.5x0.8F	GN/WH	0.50	TESLA	MAT-120-240	X051	34
7	MOLEX	33012-3003	1.5x0.8F	RD	0.50	TESLA	MAT-120-240	X914M	2
8	MOLEX	33012-3003	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X051	33
9	MOLEX	33012-3003	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X914M	18
10	MOLEX	33012-3003	1.5x0.8F	VT	0.50	TESLA	MAT-120-240	X051	37
11	MOLEX	33012-3003	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X051	31
12	MOLEX	33012-3003	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X051	30
