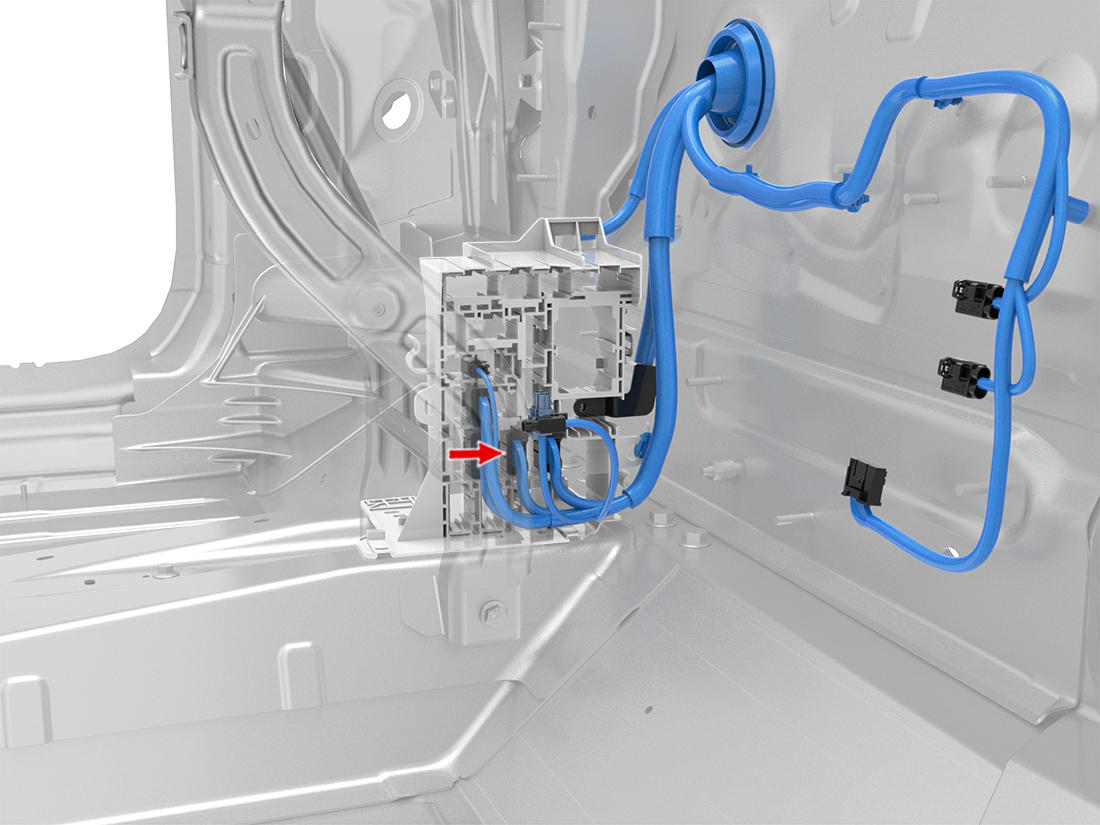

X911F - x-rhd-sop8

Tesla Part Number

1042621-01-A

Connector

SUMITOMO 6098-5625

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	VT/WH	0.50	X003	33
2	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35	X068	16
3	SUMITOMO	8100-3625	0.64x0.64F	BR/WH	0.35	X068	15
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X905F	2
5	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X750	1
6	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X750	11
7	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X751	9
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X905F	1
9	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.50	X151	31
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X151	18
11	SUMITOMO	8240-0215	1.5x0.64F	YE/WH	0.35	X751	3
12
13	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35	X068	5
14	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35	X068	4
15	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X750	12
16	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X750	22
17	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13	X751	20
18	SUMITOMO	8100-3625	0.64x0.64F	BK/WH	0.50	X151	17
19	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50	X151	29
20	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35	X751	14
