X915F - x-rhd-sop8

Tesla Part Number

1042616-01-A

Connector

SUMITOMO 6098-5644

Color

BK

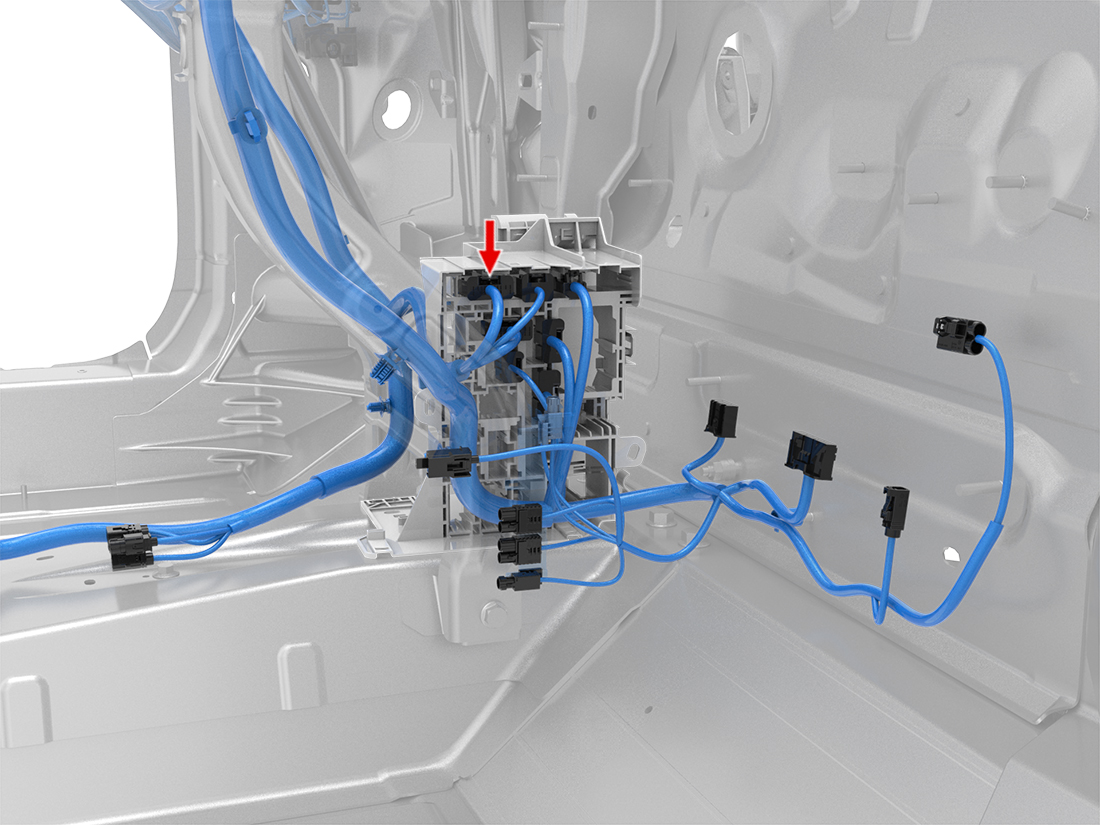

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X126	4
2	SUMITOMO	8240-0214	1.5x0.64F	BN	1.50			X164	4
3	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35			X126	3
4	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X730	3
5	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35			X171	14
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X200	17
7	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X171	2
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X200	16
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X200	1
10	SUMITOMO	8240-0215	1.5x0.64F	RD/VT	0.50			X026	8
11	SUMITOMO	8240-0213	1.5x0.64F	RD/BK	0.75			X173	14
12
13	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35			X126	8
14	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X730	14
15	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X200	18
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X200	15
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X200	2
18	SUMITOMO	8240-0213	1.5x0.64F	RD	0.75			X173	18
