X922M - x-rhd-sop8

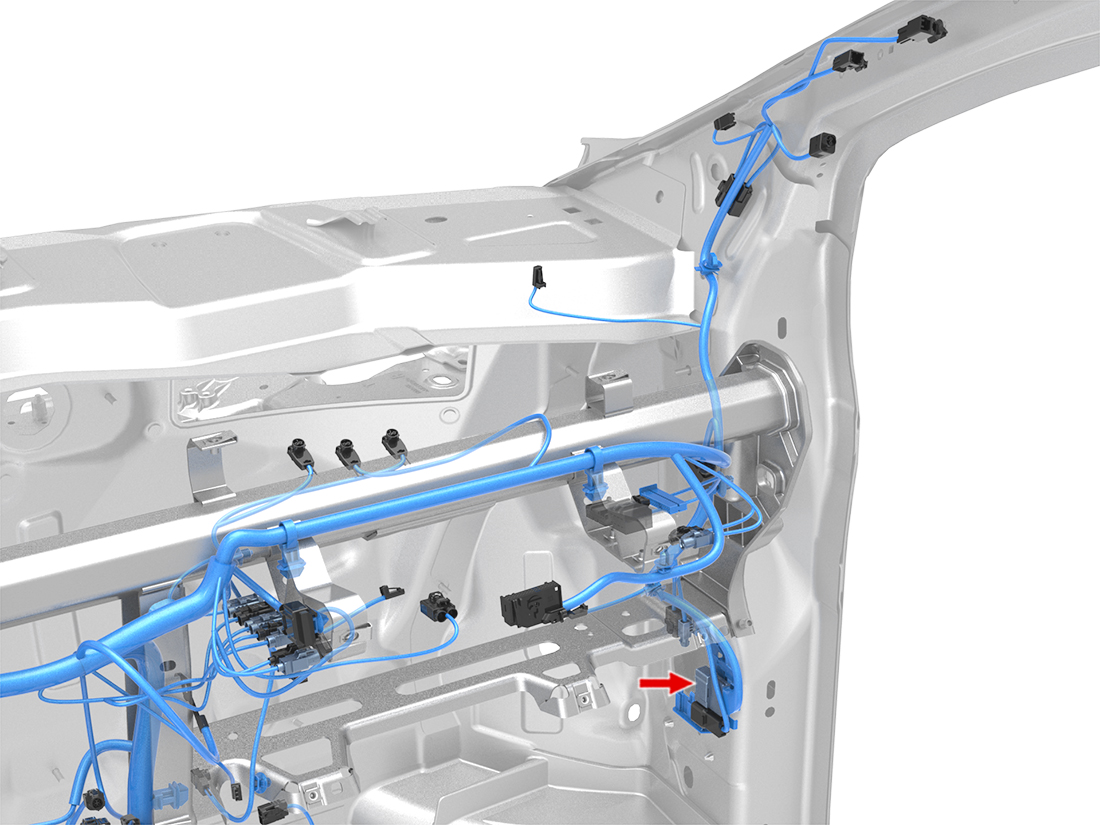

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4923 | 1.5x0.6M | BU | 1.50 | X924F | 1 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X926F | 6 | ||
| 6 | SUMITOMO | 8100-3622 | 0.64x0.64M | BN/WH | 0.35 | X734 | 3 | ||
| 7 | |||||||||
| 8 | SUMITOMO | 8230-4878 | 0.64x0.64M | WH | 0.13 | X927F | 2 | ||
| 9 | SUMITOMO | 8230-4925 | 1.5x0.6M | BK | 0.35 | GND_IP_R | 1 | ||
| 10 | SUMITOMO | 8230-4924 | 1.5x0.6M | GN/WH | 1.00 | X560 | 4 | ||
| 11 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 1.50 | GND_IP_R | 1 | ||
| 12 | |||||||||
| 13 | |||||||||
| 14 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.35 | X926F | 15 | ||
| 15 | SUMITOMO | 8100-3622 | 0.64x0.64M | BN | 0.35 | X734 | 14 | ||
| 16 | SUMITOMO | 8230-4878 | 0.64x0.64M | GY | 0.13 | X927F | 9 | ||
| 17 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 1.50 | GND_IP_R | 1 | ||
| 18 | SUMITOMO | 8230-4924 | 1.5x0.6M | GN | 0.75 | X175 | 2 | ||
