X954M - x-rhd-sop8

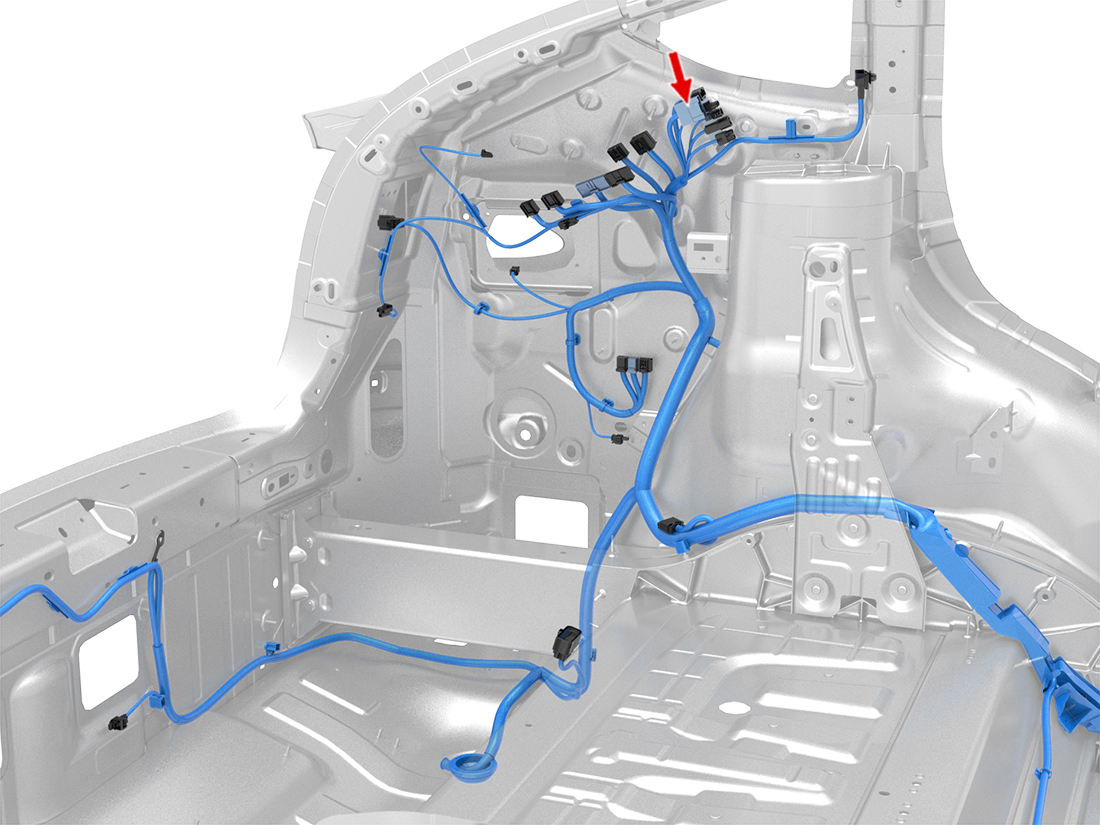

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4924 | 1.5x0.6M | BU | 0.75 | X925M | 3 | ||
| 2 | SUMITOMO | 8230-4924 | 1.5x0.6M | GN | 0.75 | X925M | 5 | ||
| 3 | SUMITOMO | 8100-3623 | 0.64x0.64M | GY/WH | 0.50 | X071 | 31 | ||
| 4 | |||||||||
| 5 | SUMITOMO | 8100-3622 | 0.64x0.64M | BU/WH | 0.35 | X071 | 17 | ||
| 6 | |||||||||
| 7 | SUMITOMO | 8100-3622 | 0.64x0.64M | VT | 0.35 | X070 | 17 | ||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | SUMITOMO | 8230-4924 | 1.5x0.6M | VT | 0.75 | X925M | 4 | ||
| 12 | SUMITOMO | 8230-4924 | 1.5x0.6M | BK | 0.75 | X925M | 6 | ||
| 13 | SUMITOMO | 8100-3623 | 0.64x0.64M | BU | 0.50 | X071 | 30 | ||
| 14 | SUMITOMO | 8100-3622 | 0.64x0.64M | VT | 0.35 | X071 | 15 | ||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
