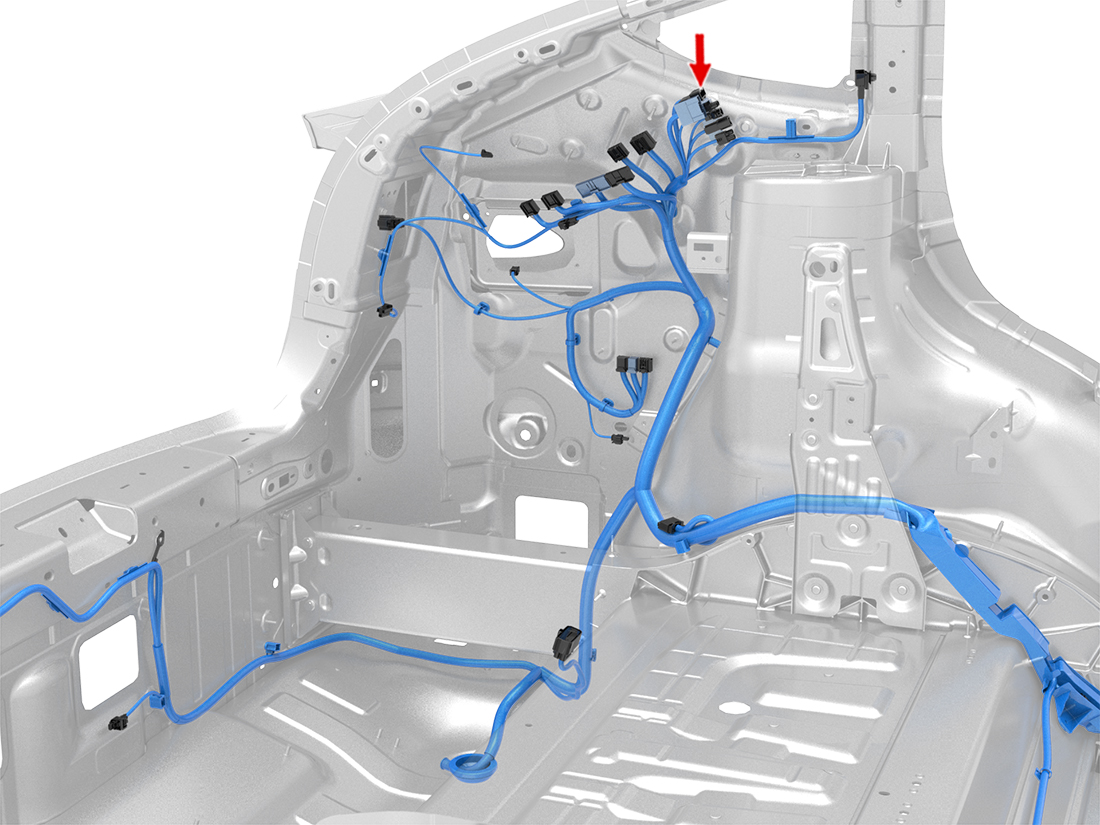

X955M - x-rhd-sop8

Tesla Part Number

1042582-01-A

Connector

SUMITOMO 6098-3886

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3622	0.64x0.64M	BN/WH	0.35	X071	40
3	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X070	5
4	SUMITOMO	8230-4878	0.64x0.64M	RD	0.13	X070	3
5	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13	X070	10
6	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X071	8
7	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13	X070	19
8	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13	X071	6
9	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X071	19
10	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X071	33
11
12
13	SUMITOMO	8100-3622	0.64x0.64M	BU/WH	0.35	X071	38
14	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X070	22
15	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13	X070	18
16	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13	X070	27
17	SUMITOMO	8100-3623	0.64x0.64M	GY/WH	0.50	X071	4
18	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X071	1
19	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13	X071	2
20	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13	X071	18
21	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13	X071	5
22
