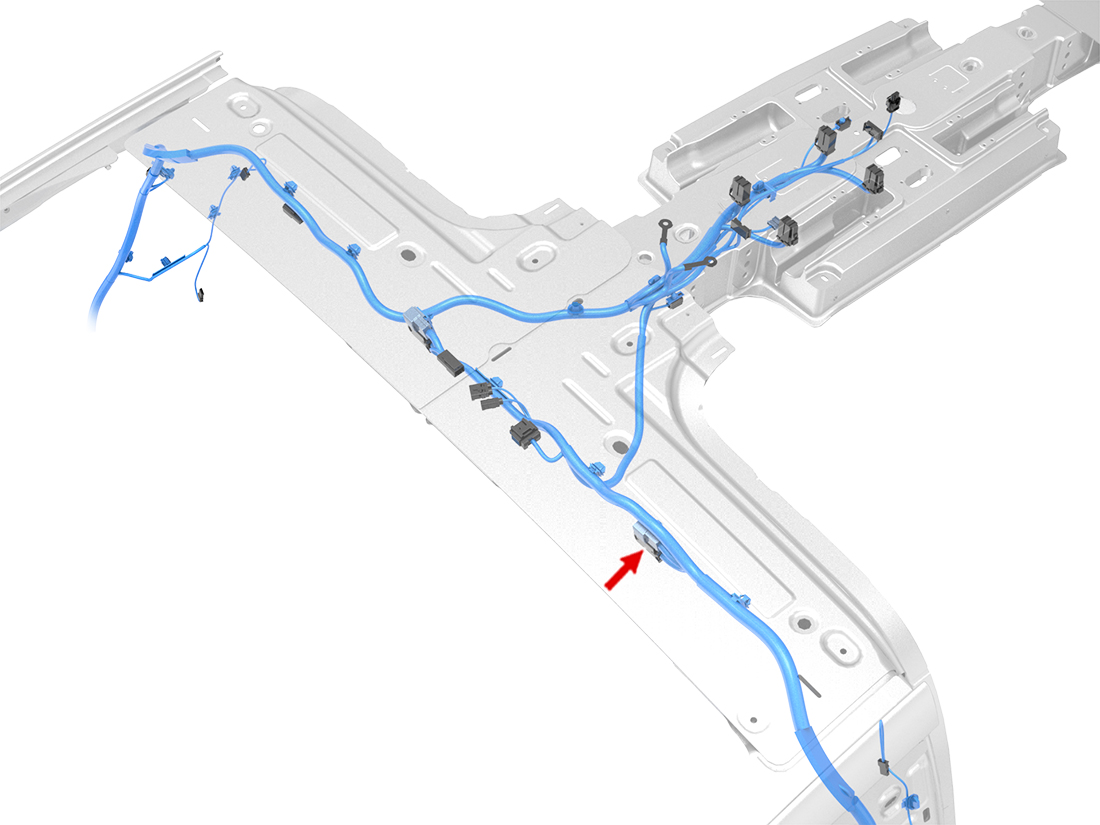

X976M - x-rhd-sop8

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X482	1
2	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35	X971M	16
3	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X482	3
4	SUMITOMO	8100-3624	0.64x0.64F	BK/GY	0.35	X971M	7
5
6	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X684	13
7
8	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X925M	8
9	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X684	7
10	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X925M	14
11	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X684	6
12	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X708	6
13	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X684	3
14	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X685	3
15	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X977M	1
16
17	SUMITOMO	8100-3624	0.64x0.64F	RD	0.35	X684	12
18
19	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X708	17
20	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X684	4
21	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X685	4
22	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X977M	3
