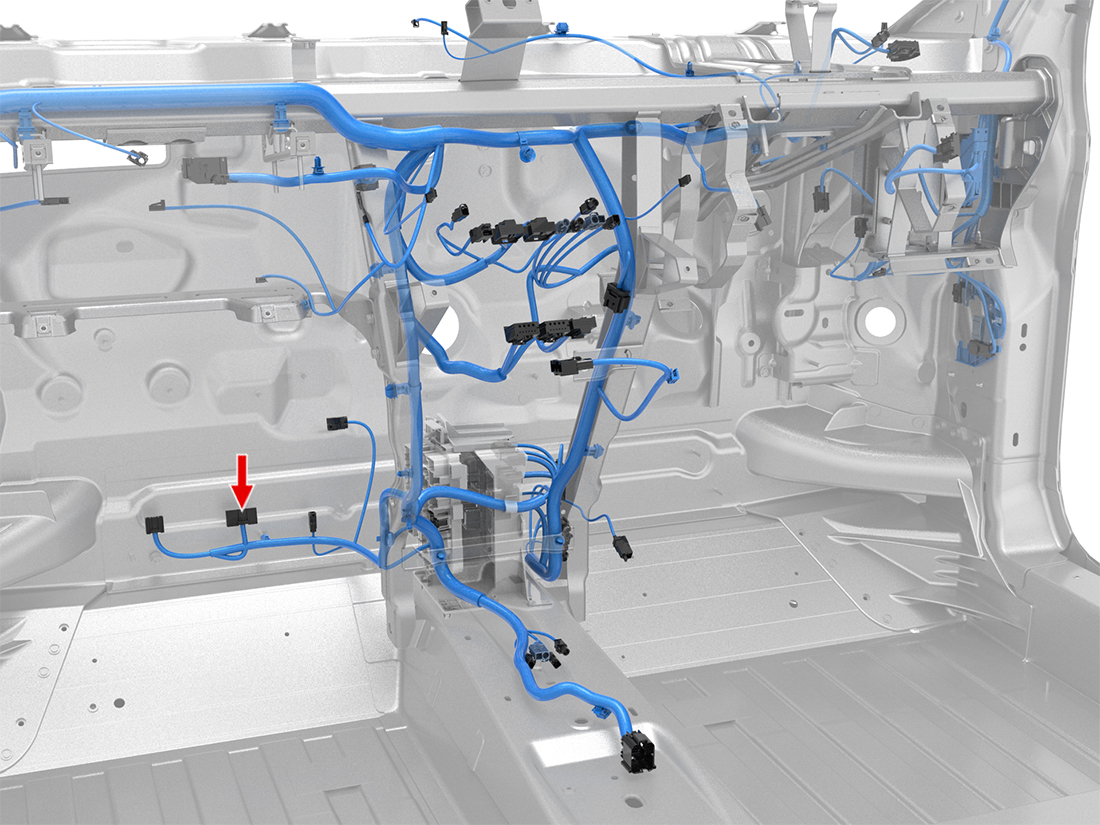

X060 - x-rhd-sop9

Tesla Part Number

1043176-00-A

Connector

SUMITOMO 6098-4756

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X924F	5
2	SUMITOMO	8100-3625	0.64x0.64F	SI	0.35	X924F	6
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X914F_1	13
4	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50	X186	2
5	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X189	2
6	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X924F	3
7	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X924F	4
8	SUMITOMO	8100-3624	0.64x0.64F	RD	0.35	X914F_1	2
9	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X924F	25
10
11
12
13	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50	X924F	19
14	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X924F	18
15	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X734	22
16	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X734	9
17	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13	X185	1
18	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13	X187	3
19	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X185	2
20	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X188	1
21	SUMITOMO	8100-3624	0.64x0.64F	BN/WH	0.35	X026	1
22	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X728	20
23	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X924F	17
24	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13	X189	1
25	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X182	3
26	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35	X181	3
27	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X182	4
28	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35	X181	4
