X071 - x-rhd-sop9

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

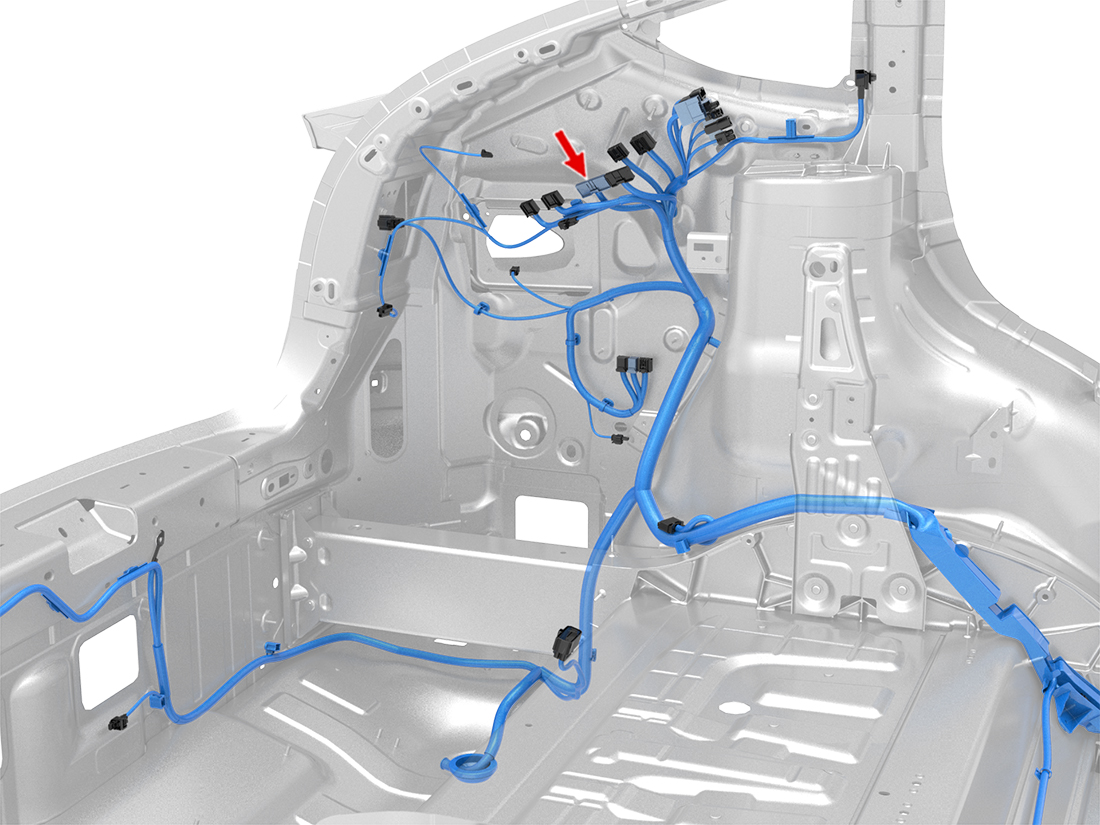

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X955M	18
2	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X955M	19
3	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X293A	1
4	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.50			X955M	17
5	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X955M	21
6	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X955M	8
7
8	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X955M	6
9
10
11
12
13
14	SUMITOMO	8100-3624	0.64x0.64F	BN/WH	0.35			X353	1
15	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35			X954M	14
16
17	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35			X954M	5
18	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X955M	20
19	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X955M	9
20	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35			X353	3
21	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X353	2
22
23
24
25
26
27
28	SUMITOMO	8100-3624	0.64x0.64F	RD/BK	0.35			X981M	2
29
30	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X954M	13
31	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.50			X954M	3
32
33	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X955M	10
34
35
36
37	SUMITOMO	8100-3624	0.64x0.64F	VT/WH	0.35			X353	4
38	SUMITOMO	8100-3624	0.64x0.64F	BU/WH	0.35			X955M	13
39
40	SUMITOMO	8100-3624	0.64x0.64F	BN/WH	0.35			X955M	2
