X084 - x-rhd-sop9

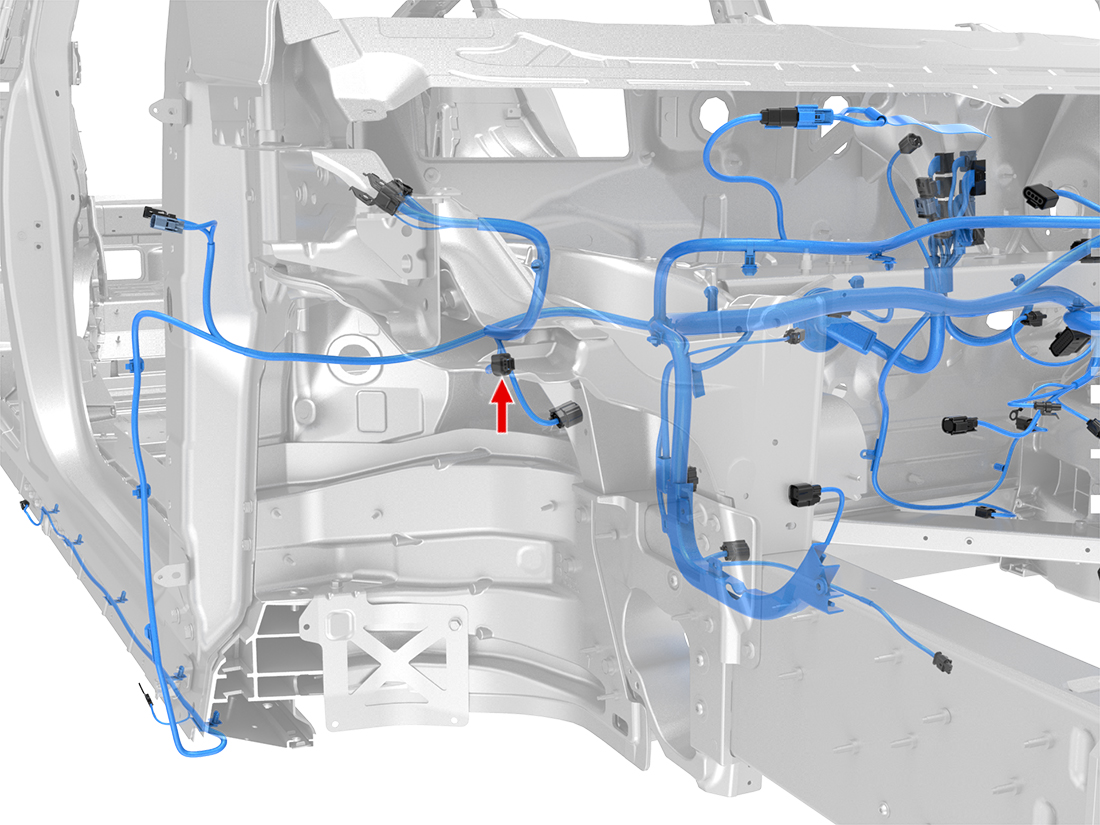

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1564324-2 | 1.5x0.6FS | BK/WH | 0.35 | AMP | 1718705-1 | X065 | 19 |
| 2 | AMP | 1564324-2 | 1.5x0.6FS | WH | 0.35 | AMP | 1718705-1 | X065 | 18 |
| 3 | AMP | 1564324-2 | 1.5x0.6FS | RD/WH | 0.35 | AMP | 1718705-1 | X065 | 14 |
