X090 - x-rhd-sop9

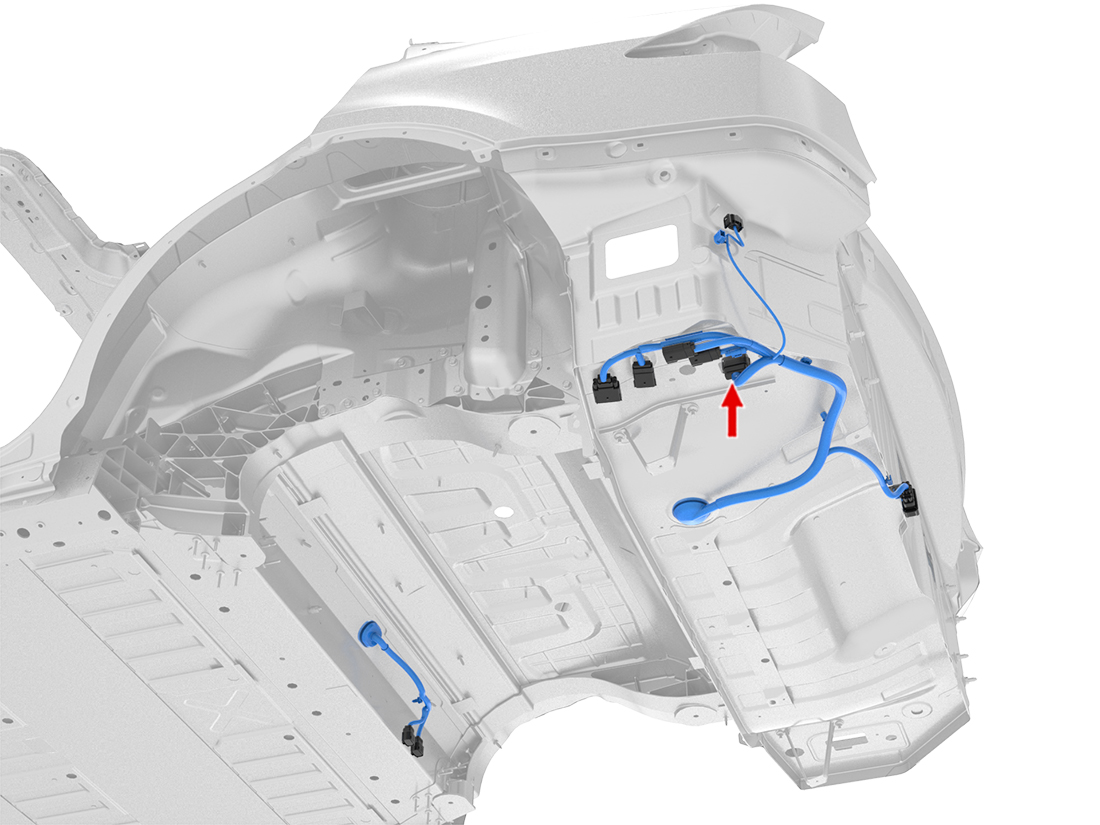

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.50 | TESLA | MAT-120-240 | X023 | 5 |
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | BU | 0.50 | TESLA | MAT-120-240 | X104A | 5 |
| 3 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.50 | TESLA | MAT-120-240 | X537 | 10 |
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.50 | TESLA | MAT-120-240 | X706 | 13 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | VT | 0.50 | TESLA | MAT-120-240 | X106 | 1 |
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-120-240 | X098 | 4 |
| 7 | |||||||||
| 8 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-120-240 | X104A | 6 |
| 9 | MOLEX | 33012-3004 | 1.5x0.8F | BN/WH | 0.35 | TESLA | MAT-120-240 | X104A | 7 |
| 10 | |||||||||
| 11 | MOLEX | 33012-3004 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | GND_LR | 1 |
| 12 | MOLEX | 33012-3004 | 1.5x0.8F | VT/WH | 0.50 | TESLA | MAT-120-240 | X951M | 8 |
| 13 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.50 | TESLA | MAT-120-240 | X951M | 15 |
| 14 | MOLEX | 33012-3004 | 1.5x0.8F | RD/WH | 0.50 | TESLA | MAT-120-240 | X706 | 2 |
| 15 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.50 | TESLA | MAT-120-240 | X106 | 2 |
| 16 | MOLEX | 33012-3004 | 1.5x0.8F | GY | 0.50 | TESLA | MAT-120-240 | X098 | 1 |
| 17 | |||||||||
| 18 | |||||||||
| 19 | BN | 0.35 | X104A | 8 | |||||
| 20 | |||||||||
