X098 - x-rhd-sop9

Tesla Part Number

1003314-00-A

Connector

MOLEX 33472-1201

Color

BK

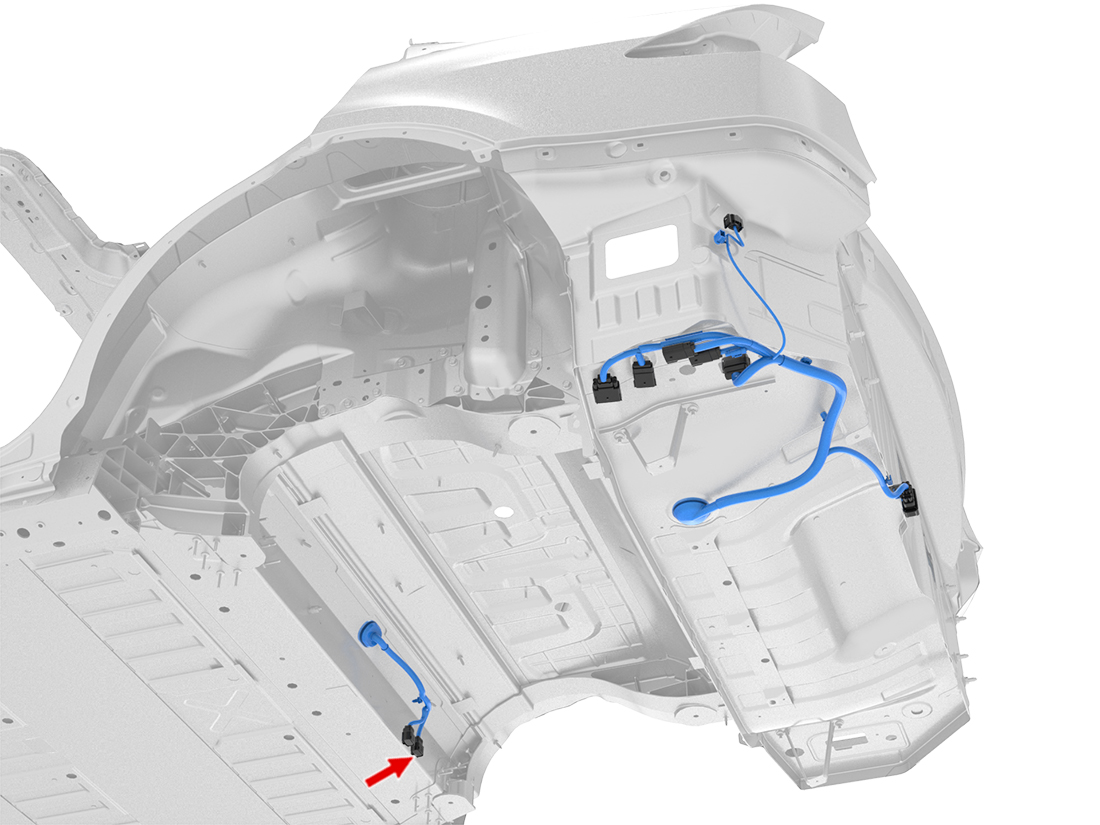

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33012-3004	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X090	16
2	MOLEX	33012-3004	1.5x0.8F	RD/WH	0.50	TESLA	MAT-120-240	X021	1
3
4	MOLEX	33012-3004	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X090	6
5	MOLEX	33012-3002	1.5x0.8F	RD	0.75	TESLA	MAT-120-240	X700	4
6
7
8
9	MOLEX	33012-3004	1.5x0.8F	RD/BK	0.50	TESLA	MAT-120-240	X910M	2
10	MOLEX	33012-3004	1.5x0.8F	YE	0.50	TESLA	MAT-120-240	X913M	12
11
12	MOLEX	33012-3004	1.5x0.8F	BK	0.50	TESLA	MAT-120-240	GND_C2	1
